Part Number

XC SP003/ FL40

Flow Rate

17L/min

Package Dimensions / Weight

38 x 120 x 100cm / 2kg

Pressure / Amps

40PSI (2,75bar) / 9,2amp

Voltage

12 VOLTS DC

Batteries Included?

No

Batteries Required?

12V BATTERY, Regulator and SOLAR PANEL

On-demand, automatic water pump for boats, campers, and vans. Self-priming allows it to be mounted above tank

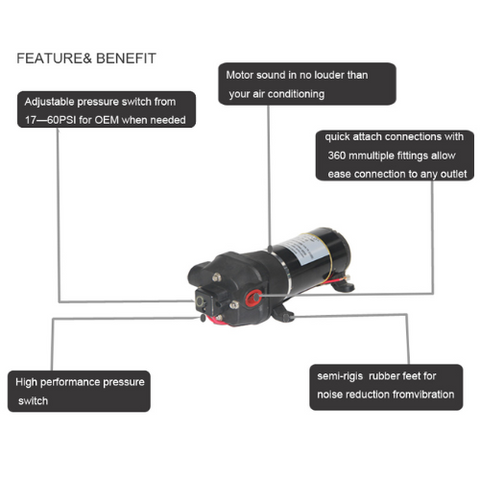

Built-in 40 PSI (2,75 bar) pressure switch automatically turns the pump off when pressure builds up such as turning off the tap & will automatically turn back on when you turn the tap back on.
IMPORTANT: The pump needs to be connected to piping correctly/tightly, as any leaks would cause the pump to switch on and off to often. This would damage the lifespan of the switch. This pump is also not a continuous use pump. It should not run longer than 30 minutes at a time with a 15 min cool down period to ambient temperature, allowed between runs.
1,5 m - Self priming ability. Dry-run detection. Quiet operation.
Changeable Pressure Switch.
Spare Parts Supported.
Thermal overload protection automatically stops motor should it overheat due to overload, with auto re-start feature.

Weight	6 kg
Dimensions	40 × 40 × 4 cm

12 VOLT SELF PRIMING DIAPHRAGM PUMP 17L/M 003
