FULL KIT - SOLAR POND FOUNTAIN KIT 5M HIGH 800L/H SOLAR PUMP, PANEL, VOLTAGE REGULATOR AND BATTERY

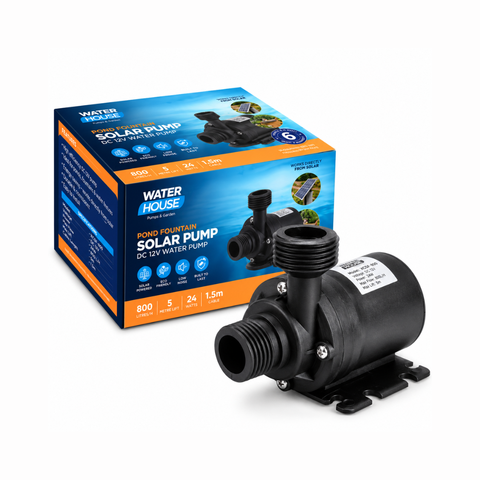

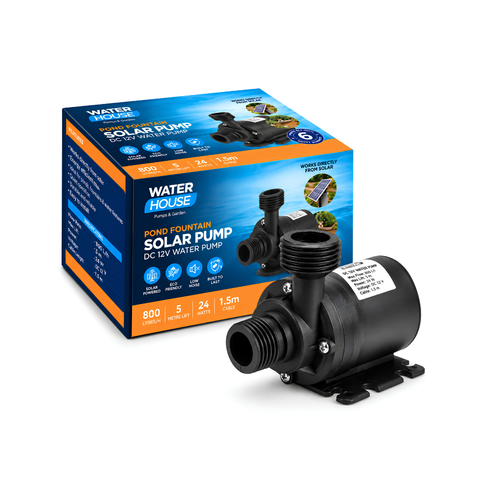

This pump is designed for underwater continuous use. It has a fitted overload thermal protection. Pumps are suitable for water feature and circulation purposes.

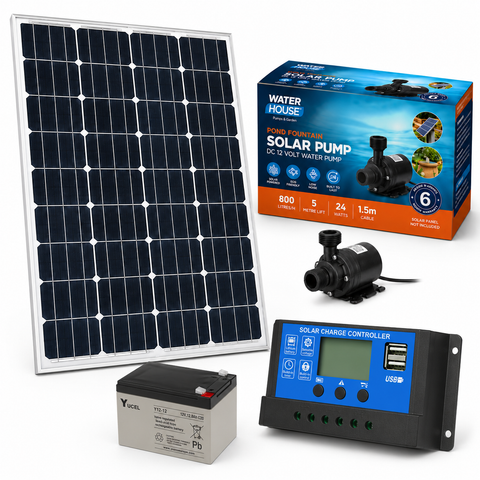

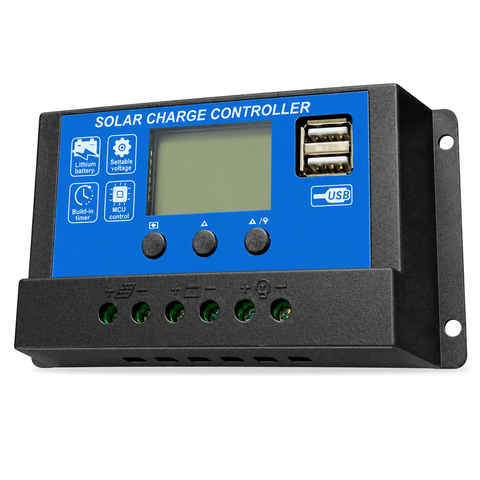

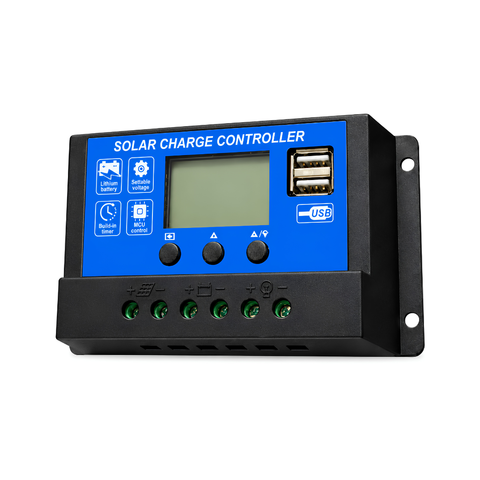

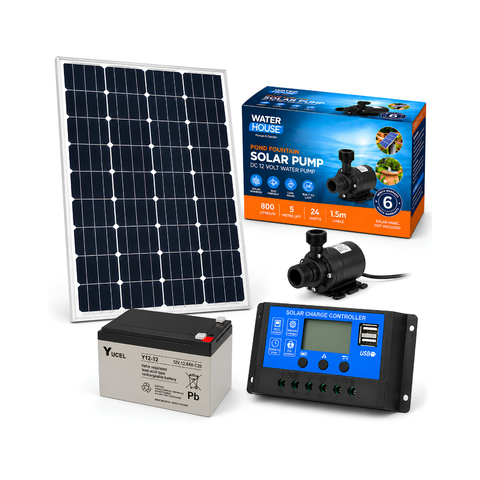

Comes with a 30 or 50 watt solar panel, 12 amp battery & 10 amp regulator.
Submersible pump designed to be underwater and able to run continuously.

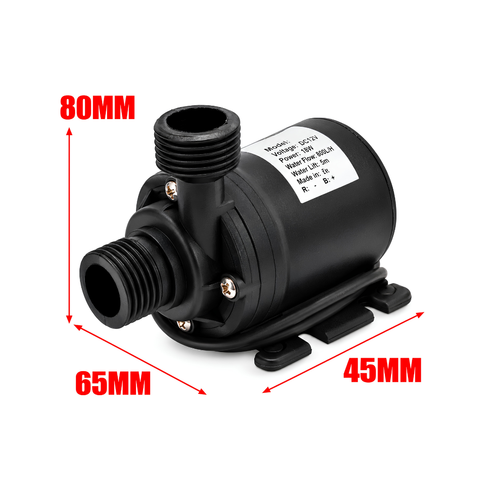

Pump specifications:

Max Flow Rate: 800 litres per hour
Max Static Lift: 5M
Rated Voltage: 12V
Impeller Type: Mag-Drive/ Closed impeller
Inlet/Outlet: 16mm Threaded Male
Motor: 26W
Max Water Temp: 35 degrees C

Application:

Pond
Water Features
Fountains
Hydroponics

30 Watt Solar Panel Specifications:

Maximum Power 30W
Open Circuit Voltage 45.5V
Short-Circuit Current 8.64A
Maximum Power Voltage 36.9V || Maximum Power Current 8.14A
Maximum System Voltage DC1000V
Nominal Operating Temperature 45 Degrees to 85 Degrees Celsius
Operating Temperature -0 Degrees Celsius to 85 Degrees Celsius

Click here for PUMP SIZING INFORMATION FORM

Additional information

Dimension: 196 x 100 x 5 cm

Video is of the basic version of pump and panel only.

We will update the video soon.
