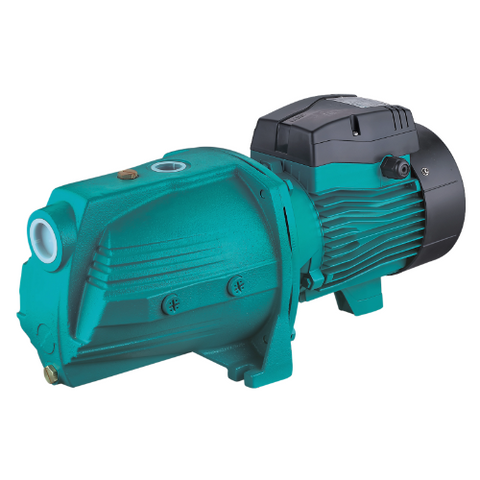

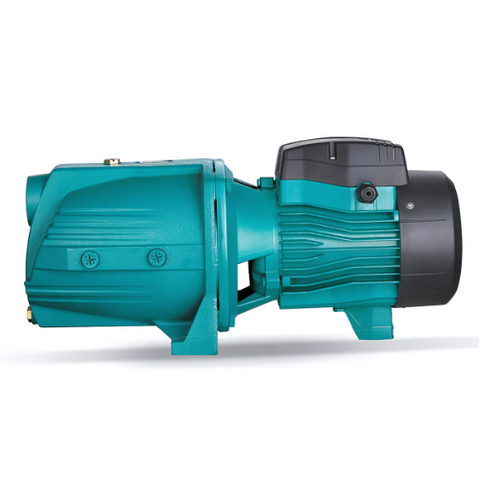

LEO AJM150 Self-Priming Jet Pump. (1.5kW, 2hp, 220V)

The LEO AJM150 Self-Priming Jet Pump (1.5kW, 2hp, 220V) is a perfect pressure boosting jet pump that transfers water and similar liquids.

Max head: 5,5bar.
Max flow at min head of 3bar = 100L/h.

Transfers clean water or other liquids similar to water without substantial chemical properties.
Suitable for home & garden, lifting water from a well, garden sprinkler irrigation, pressure boosting for running water & supporting equipment.
Pump has a cast iron body & support with anti-rust properties.
Equipped with a stainless-steel impeller for optimum efficiency & durability.
Motor has a waterproof IPX4 rating for outdoor installations & built-in thermal protection for added safety.

LEO Pumps provides innovative water pump solutions including water pumps, boosters, drives, controllers and so much more, all with robust design and high-grade materials.

Product specifications:

Model:	AJM150
Power:	1.5kW, 2hp
Voltage:	220V
Insulation class:	F
Protection class:	IPX4
Maximum suction	+9m
Maximum ambient temperature	+40°C
Maximum liquid temperature	+40°C
Dimensions [L x W x H]:	512 x 206 x 236mm
Weight:	25.4kg

Materials:

Pump Body:	HT200
Nozzle:	PPO
Impeller:	AISI304 stainless steel
O-ring:	NBR
Venturi tube:	PPO
Diffuser:	PPO
Mechanical seal:	Carbon/ceramic
Support cover:	HT200
Support:	ZL102
Terminal board:	PC
Terminal box:	ABS
Rear cover:	ZL102
Fan:	PP
Fan cover:	PP

Additional information:

Weight	25.4 kg
Dimensions	51.2 × 20.6 × 23.6 cm
