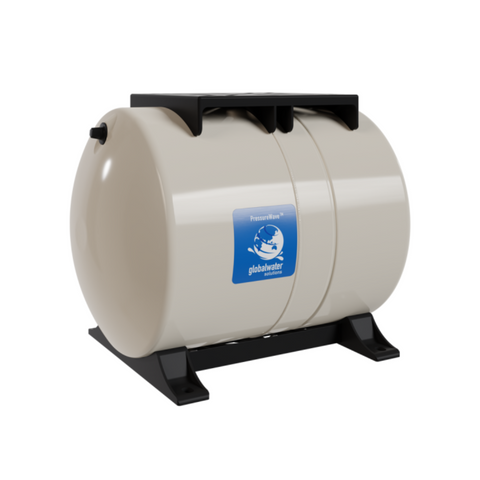

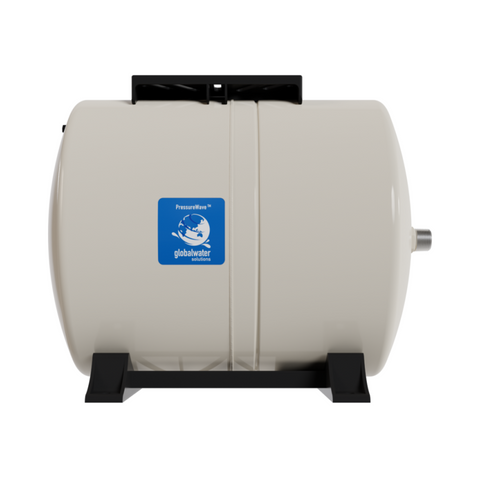

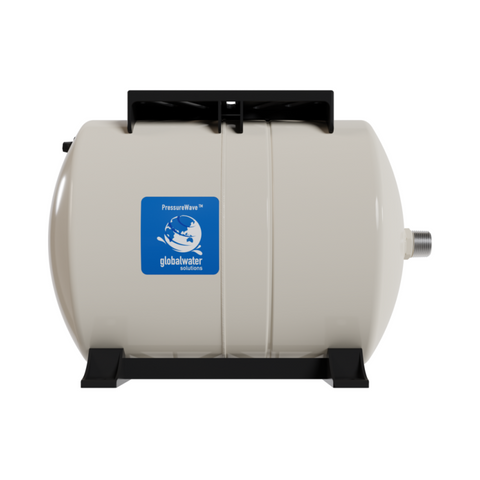

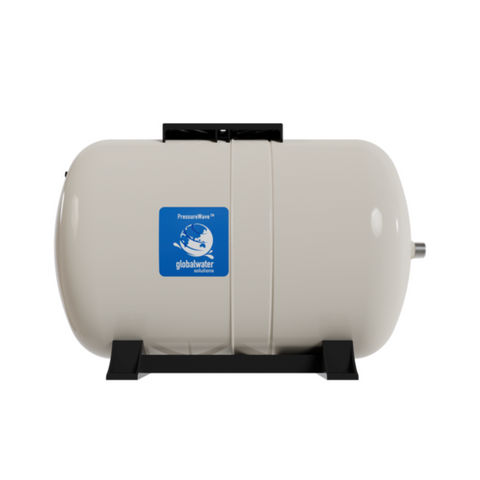

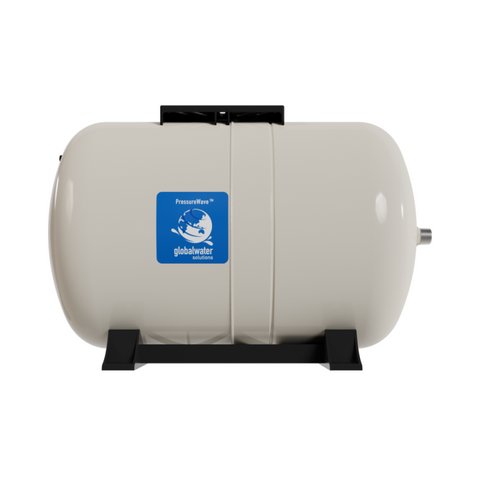

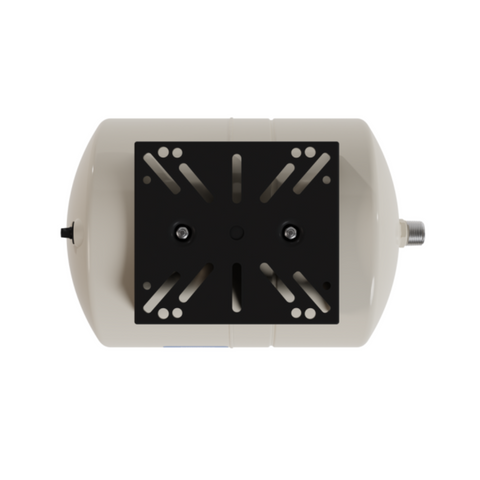

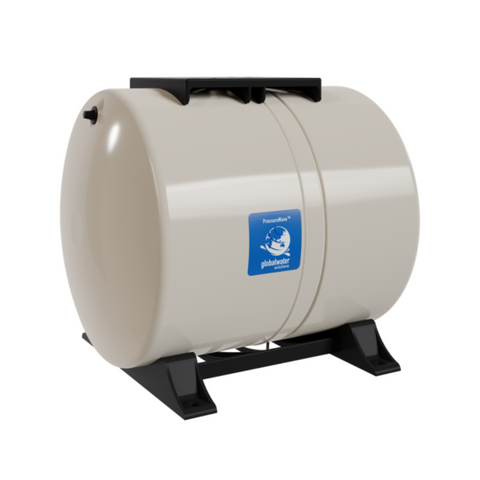

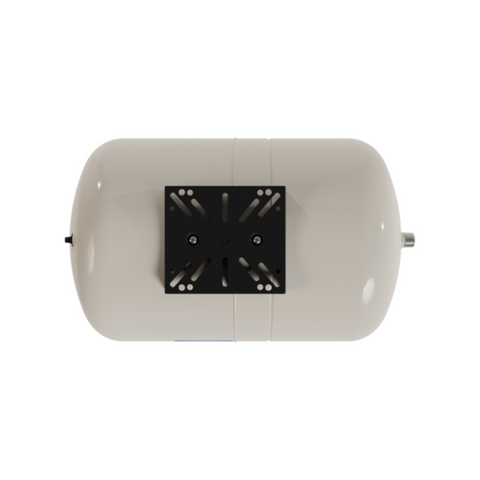

PressureWave™ PWB Horizontal Pressure Tanks – 24L / 60L / 100L

Engineered for horizontal installations, the PWB-series tanks provide reliable performance where space, flow stability, and durability matter. Perfect for booster systems, thermal expansion, irrigation, or hydraulic hammer arresting.

FEATURES:

Available in 24 L, 60 L, and 100 L capacities
Steel shell with virgin polypropylene liner and high-grade butyl diaphragm for long service life
Patented leak-proof design with stainless-steel water connection
Factory pre-charged to 1.9 bar (28 psi) for immediate installation
Rated for 10 bar maximum working pressure and up to 90 °C operating temperature
Horizontal orientation – ideal for spaces where vertical clearance is limited

SPECIFICATIONS:

Model	Nominal Volume	Connection	Diameter
PWB-24LH	24 L	1″ BSPT	321 mm
PWB-60LH	60 L	1″ BSPT	423 mm
PWB-100LH	100 L	1″ BSPT	475 mm

APPLICATIONS:

Booster pump systems (residential, commercial, and agricultural)
Thermal expansion control in hot-water systems
Stabilizing pressure and reducing pump cycling
Protecting piping and equipment from hydraulic hammer

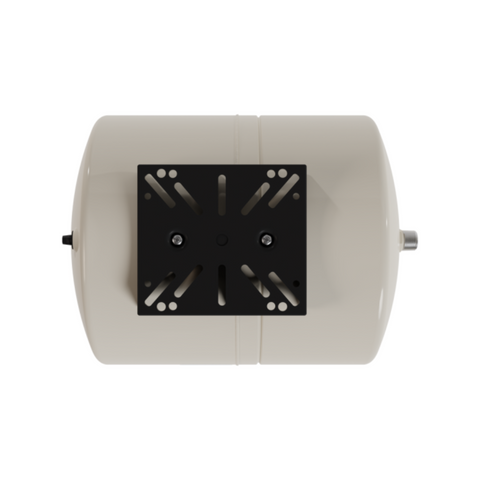

PressureWave Horizontal Water Pressure Tank
