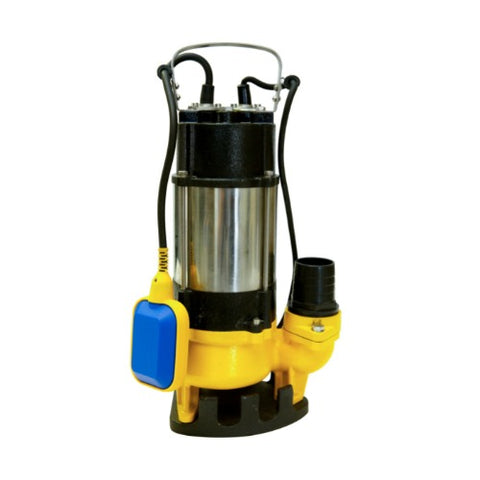

Sewage & Drainage Pump. (DV-450-F)

This pump is designed to remove water, waste, and other small materials from your home septic tank or sewage system.

1. The maximum pump submersion depth allowed in water is 5m.
2. The medium being pumped cannot be a temperature higher than 40*C.
3. Trans medium pH: 4-10.
4. Kinematics viscosity of the trans medium is 7 10-7~23 10-6 m2/s.
5. Density (Viscosity) of the trans medium limit: 1200 kg/m3.

Type	Outlet Diameter mm	Power kW	Max.Flow m3/h	Max.Head m	Cable Length	G.W Kg
DV450*	50	0.45	12	8.5	6	18

APPLICATIONS:

This pump can be used for sewage and drainage with high velocity and can take solids up to 25mm thick. *solids should not be abrasive.

FEATURES:

This advanced DV series, a single-phase and three-phase drainage pumps branch, will be your ideal drainage helper. The letter which substitutes for the letters indicates the distinct design of the filter and the broadness of the high efficient area. It can work safely and efficiently at high flux with the feature of complete heads. The design is designed to a wide tunnel which helps to convey the long fiber liquid or the solid whose diameter is about 25mm.

The selection of bottom suction structure, stainless steel, and special cast iron made the pump has the capabilities of complete drain and high resistance special cast iron made the pump has the capabilities of complete drain and high resistance of abrasion and corrosion. The float switch can automatically control on and off with the change of the liquor level. The protector in the motor can automatically cut off the power when it overheated or overcurrent thus guarantee the security and reliability of the pump run even in the atrocious environment.

Weight 16.6 kg

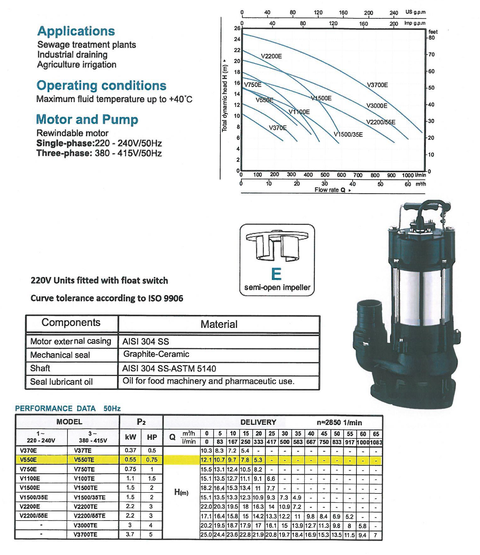

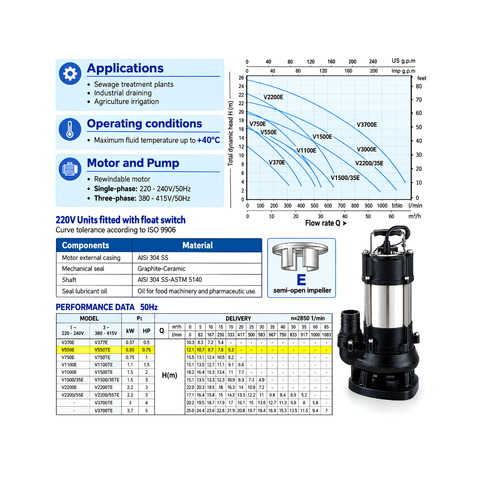

Click HERE for pump specifications and flow graph

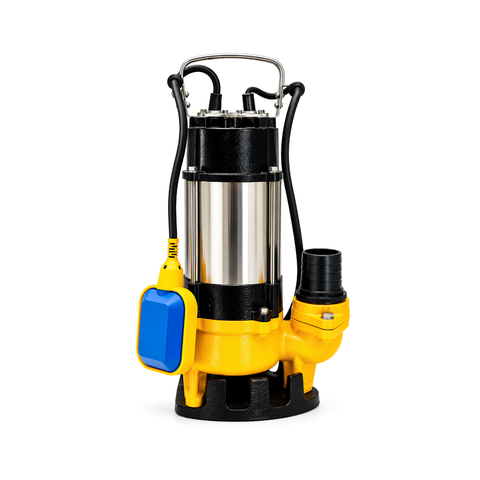

SEWAGE AND DRAINAGE PUMP (DV-450-F)
