0.37KW 220V BOOSTER PUMP

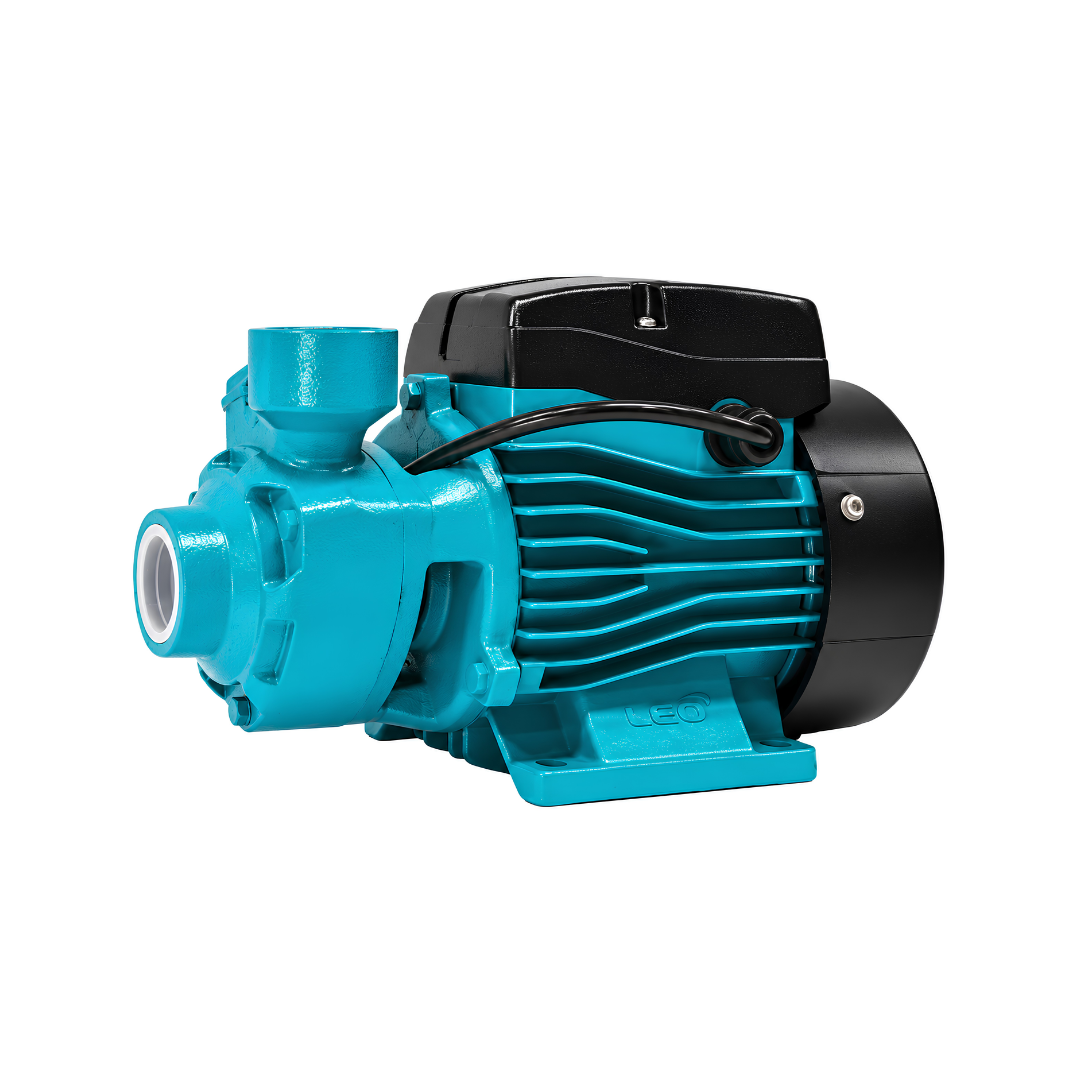

0.37kw 220v Peripheral Booster Pump.

Need a simple way to improve low water pressure? The APm37 0.37kW Peripheral Booster Pump is designed to boost water pressure and provide a reliable flow for everyday clean water applications.

Compact and practical, this 220V booster pump delivers a maximum flow of 2.4m³/h (2400L/h) and a maximum head of 35 metres. It’s a great option for small household water supply systems, automatic sprinkler systems and other applications where additional water pressure is needed.

APPLICATION:

The APm37 Peripheral Booster Pump can be used for:

• Boosting low household water pressure

• Small domestic water supply systems

• Automatic sprinkler systems

• Clean water transfer

• Small air-conditioning systems

• Supporting water equipment

• Pumping other liquids with similar physical and chemical properties to clean water

SPECIFICATIONS:

Type	APm37
Power	370W / 0.37kW / 0.5HP
Voltage	220V
Inlet / Outlet	1" / 1" (25mm)
Maximum Flow	2.4m³/h (2400L/h)
Maximum Head	35m
Maximum Suction	2m
Gross Weight	5.5kg
Package Size	283 × 158 × 171mm

FEATURES:

• Cast iron pump body and support with special anti-rust treatment

• Anti-block impeller system

• Durable brass impeller

• Copper motor winding

• Built-in thermal protector for the single-phase motor

• Maximum liquid temperature of 40°C

• Maximum ambient temperature of 40°C

• Insulation Class F

• IPX4 protection rating

Additional information:

Weight: 5.1kg
Dimensions: 26 × 13 × 15cm

APm37/75 Materials
1	Pump body (HT200)
2	Impeller (Brass)
3	Mechanical seal (Carbon/Ceramic)
4	O-ring (NBR)
5	Support (HT200)
6	Bearing
7	Rotor
8	Fan cover (PP)
9	Fan (PP)
10	Rear cover (ZL 102)
11	Capacitor
12	Terminal box (ABS)
13	Terminal board (PC)
14	Stator
15	Filling plug (HPb59-1)

Download Product Manual
