12 VOLT XCSP 005 SOLAR POWERED PUMP

12 VOLT XCSP 005 Solar Powered Pump

Compact, Quiet & Reliable Water Circulation

Looking for a small but powerful pump to keep water flowing? The 12 VOLT XCSP 005 12 volt DC Pump is a compact, energy-efficient solution for water circulation and liquid transfer in domestic, commercial and industrial applications.

With a maximum flow rate of 6.5 litres per minute (390 L/h) and a maximum static lift of 2.5 metres, this 12V DC inline water pump is ideal for applications where space is limited but reliable water movement is essential.

What makes this pump stand out is its brushless DC motor and magnetic drive technology. With fewer moving parts and no conventional rotating shaft seal, the pump is designed for quiet, efficient operation and reduced maintenance.

It's also manufactured using food-grade materials, making it suitable for compatible drinking water and beverage applications, including coffee machines and water dispensers.

Designed for continuous operation and capable of handling liquid temperatures up to 100°C, the XCSP 005 is a versatile choice for water circulation and liquid transfer systems.

Why You'll Love It

• Compact Inline Design: Ideal for installations where space is limited.

• Maximum Flow Rate of 6.5 L/min: Delivers up to 390 litres per hour for small circulation and transfer applications.

• Maximum Static Lift of 2.5 Metres: Suitable for low-head water circulation systems.

• 12V DC Operation: Convenient for compatible low-voltage installations.

• Energy-Efficient Brushless Motor: Designed for reliable operation with reduced mechanical wear.

• Quiet Operation: Features a dynamically balanced impeller to minimise noise and vibration.

• Magnetic Drive Technology: Uses a static-seal design to reduce the risk of leakage around a conventional drive shaft.

• Food-Grade Materials: Suitable for compatible food and beverage liquid transfer applications.

• High-Temperature Capability: Specified for liquid temperatures from 0°C to 100°C.

• Continuous Running: Designed for applications requiring ongoing water circulation.

• Durable Ceramic Components: Features a high-density ceramic bearing and shaft for improved durability.

• Long Service Life: Designed for an ideal operating lifespan of up to 30,000 hours under suitable conditions.

Designed for Quiet & Efficient Operation

The XCSP 005 12V DC Pump features an advanced brushless motor and magnetic drive system designed to deliver reliable water circulation with minimal noise.

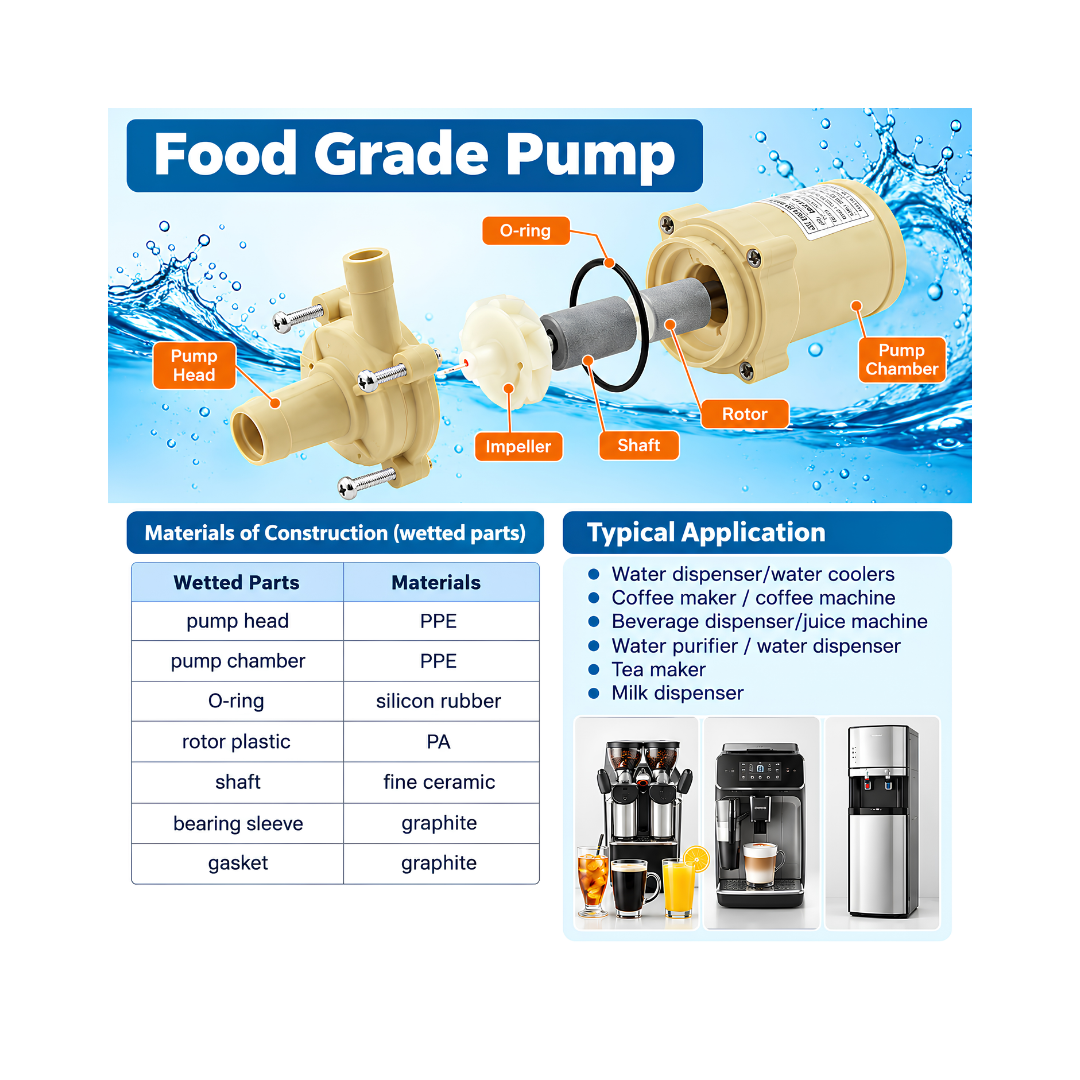

Unlike conventional pumps with multiple moving components, this design uses a magnetically driven rotor and impeller supported by a ceramic bearing.

This helps reduce mechanical wear while supporting smooth, efficient operation.

The pump's compact construction also makes it a practical choice for equipment where installation space is limited.

Ideal Applications

• Coffee Machines: Circulate or transfer water in compatible coffee-making equipment.

• Water Dispensers: Supply water in suitable beverage dispensing systems.

• Drinking Water Systems: Transfer water in compatible food-grade installations.

• Food & Beverage Equipment: Circulate suitable liquids in commercial beverage systems.

• Water Circulation: Keep water moving in small domestic and commercial systems.

• Liquid Transfer: Move fresh water, seawater and other compatible liquids with a viscosity similar to water.

• Industrial Equipment: Suitable for low-voltage circulation and transfer applications.

• High-Temperature Water Systems: Circulate compatible liquids within the specified operating temperature range.

Product Specifications

Specification	Details
Model	XCSP 005
Pump Type	Inline Centrifugal Water Pump
Operating Voltage	12V DC
Maximum Flow Rate	6.5 L/min (390 L/h)
Maximum Static Lift	2.5 m
Impeller Type	Open Impeller
Motor Type	Brushless DC Motor
Drive Technology	Magnetic Drive
Food-Grade Materials	Yes
Liquid Temperature Range	0°C to 100°C
Continuous Operation	Yes
Bearing & Shaft	High-Density Ceramic
Ideal Service Life	Up to 30,000 Hours
Compatible Liquids	Fresh Water, Seawater & Other Compatible Low-Viscosity Liquids

Built for Long-Lasting Performance

The XCSP 005 is designed with durability and efficiency in mind.

Its high-density ceramic bearing and shaft provide resistance to wear and support operation at elevated liquid temperatures.

The magnetically driven impeller is dynamically balanced for smooth operation, while the brushless DC motor eliminates the need for conventional motor brushes.

With a design life of up to 30,000 hours under ideal conditions, this pump is well suited to applications requiring regular or continuous water circulation.

Important Information

• 12V DC Power Supply Required: Use a compatible, properly regulated 12V DC power source.

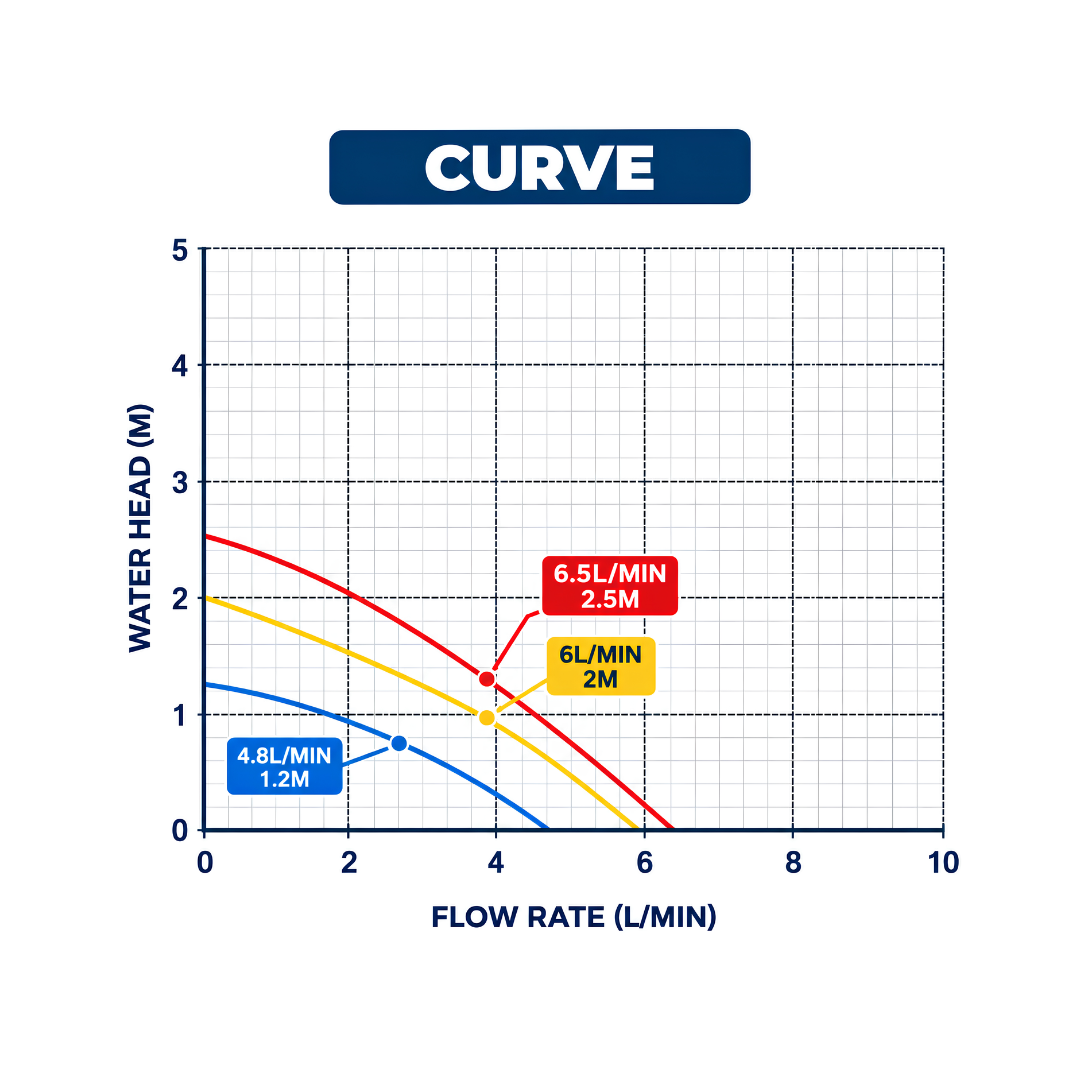

• Maximum Static Lift: The pump has a maximum discharge head of 2.5 metres. Actual flow decreases as pumping height increases.

• Maximum Liquid Temperature: Do not exceed the specified 100°C limit. Confirm that hoses, fittings and the complete installation are rated for the intended temperature.

• Liquid Compatibility: Only pump liquids compatible with the pump's materials.

• Food-Grade Applications: Confirm the complete pump's food-contact certification and suitability for your specific beverage or drinking-water application.

• Continuous Operation: Ensure the pump is correctly installed and supplied with liquid during operation.

• Installation: Follow the manufacturer's installation instructions and avoid operating the pump dry unless dry-run capability is specifically confirmed.

For best performance, ensure the pump is correctly matched to your required flow rate, pumping height and operating conditions.
