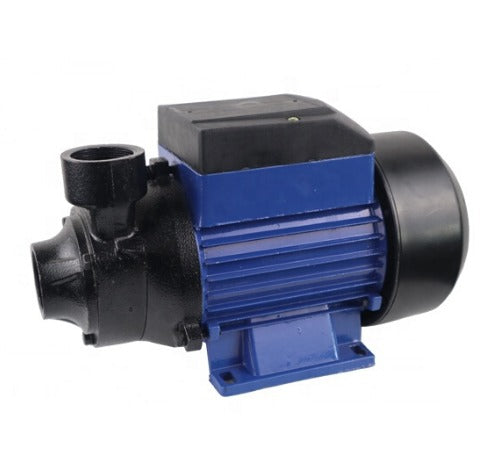

24V DC SOLAR BOOSTER PUMP

24V DC Solar Booster Pump.

350watt, 1500L/h, 1.5bar pressure

Specifically designed to run from solar panels which pump water from one site to another.
Ideal for transferring water without abrasive or corrosive particles or other liquid whose properties are similar to water. and widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply, and drainage.
Livestock watering, remote homes, cabins, and small irrigation where no power supply. Water is simply pumped during the day by pumping water into a tank which enables access to water at any time.This is ideal for a site without a reliable electricity source of main power

WHY WE LOVE THIS PRODUCT:

Renewable energy, very cost-effective no fuel costs.

FEATURES:

• Brush motor.
• Superior Brass impeller; longer-lasting, rustproof.
• The pump requires connection to solar panels,  any 24V DC, 600 watt DC power source to operate.
• Startup when Solar panel supplies energy >= 10%.
• The pump needs to be switched on or off manually. NO flow control is available with the unit.
• Use in conjunction with a voltage regulator 20amp and 30ampH (min) battery.
• Stainless Steel Pump Shaft. Cast iron housing.
• Compact; easy to install, operation and maintenance.
• Safe and reliable.

Note: solar panels not included.

PRODUCT SPECS:

• Voltage: DC24V
• Power: 350Watt , 15Amp
• Outlet/Outlet : 1 Inch.
• Max Head: 15M (1,5 bar)
• Max Flow: 1500L/h
• Max Suction: 1M (not considered self-priming)
• Cooling Fan
• Overheating Protection
• The Solar Pump can connect to a 24V solar panel, 24V battery setup or any other 24V DC power source.

We HIGHLY recommend the use of a 20amp voltage regulator in conjunction with the 400-600 watt solar panels and battery. This will prolong the lifespan of the pump.

When running from a battery only: Make sure that the battery is constantly charged by alternator while the vehicle is running or using the voltage regulator to maintain voltage when using solar power.

A depleting or draining battery will burn your pump out should it not give a consistent 24 volt DC supply.

Additional information

Weight 6 kg

Dimensions 26 × 13 × 15 cm
