ADBLUE PUMP 12 VOLT 30 L/MIN

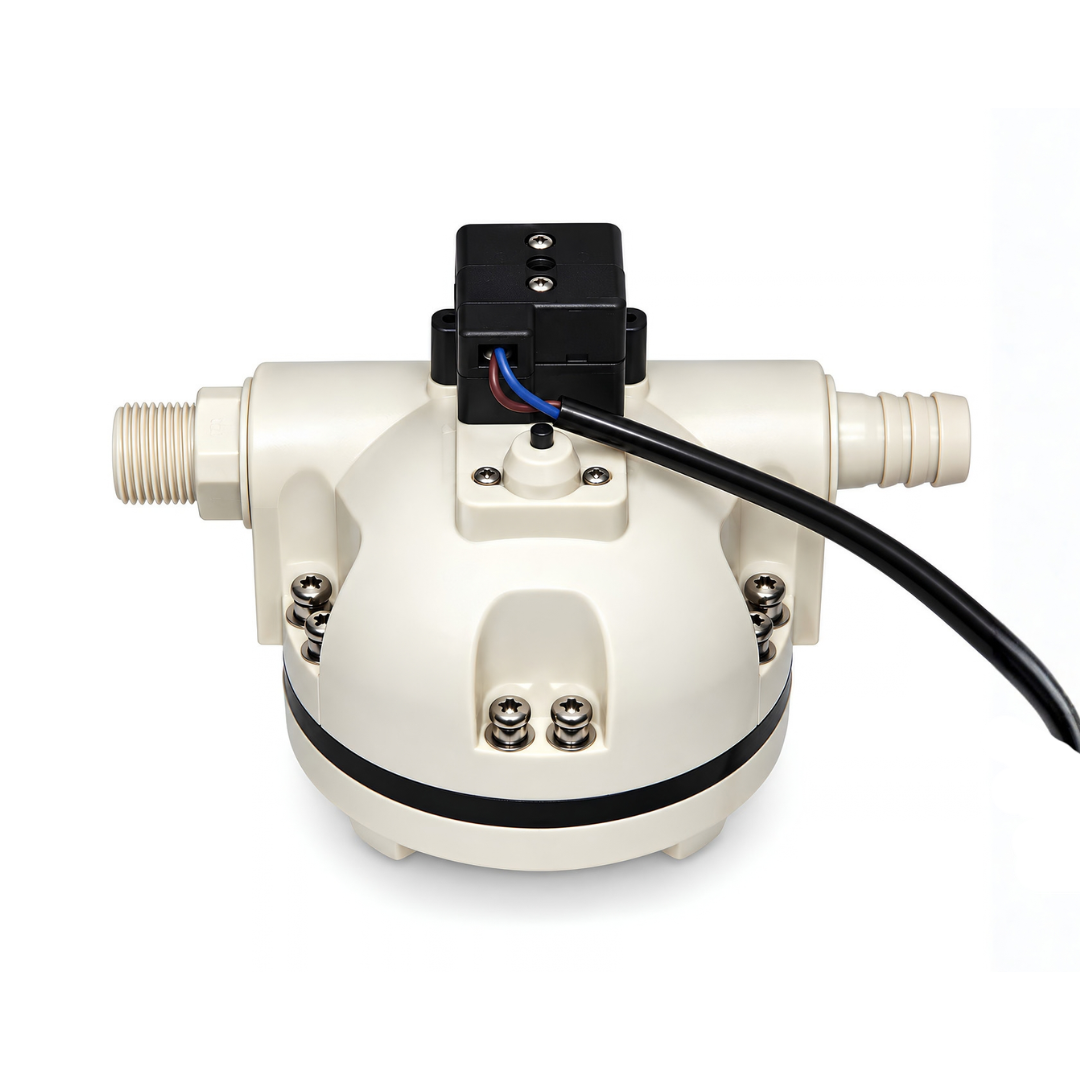

AdBlue Pump 12 volt 30 L/min

Need a reliable 12V pump for transferring AdBlue, urea solution or other compatible liquids? This AdBlue Pump 12 volt 30 L/min is part of the Pro Pump diaphragm pump range and is designed for convenient transfer and delivery applications around farms, workshops, homes and other suitable installations.

Delivering a maximum flow rate of 30L/min (8 GPM) at up to 2.5 bar (40 PSI), this self-priming diaphragm pump provides smooth, consistent flow and can run dry for limited periods.

The pump also features a built-in pressure switch, allowing it to operate as a demand pump. It can automatically switch on when a compatible tap or valve is opened and switch off again when it is closed.

FEATURES:

• 12V diaphragm pump

• Designed for AdBlue / urea solution transfer

• Maximum Flow Rate: 30L/min (8 GPM)

• Maximum Pressure: 2.5 bar (40 PSI)

• Current: 16A

• Self-priming operation

• Can run dry for limited periods

• Built-in pressure switch for automatic demand operation

• Smooth and consistent liquid flow

• Clamp ports for convenient installation

• Thermal protection on the motor

• Available in EPDM and Viton

• Suitable for intermittent operation

APPLICATIONS:

Depending on the selected seal material and chemical compatibility, this pump can be used for applications including:

• AdBlue transfer

• Urea solution transfer

• Liquid transfer and delivery

• Crop spraying

• Water filtration systems

• Pressure boosting

• Farm applications

• Garden and leisure applications

• Compatible chemical transfer

Always confirm chemical compatibility with the selected EPDM or Viton version before pumping liquids other than water or AdBlue/urea solution.

AUTOMATIC DEMAND OPERATION:

The built-in pressure switch allows the pump to automatically respond to demand within a compatible system.

When a tap or valve is opened, the pressure drops and the pump can switch on automatically. When the tap or valve is closed and the required pressure is reached, the pump switches off.

This makes it a convenient option for applications where you don't want to manually switch the pump on and off every time liquid is required.

SPECIFICATIONS:

• Pump Type: Diaphragm demand pump

• Voltage: 12V

• Maximum Flow Rate: 30L/min (8 GPM)

• Maximum Pressure: 2.5 bar (40 PSI)

• Current: 16A

• Connection: Female 1" (25mm), reduced to 3/4" (16mm) outlet

• Seal Options: EPDM or Viton

• Motor Protection: Thermal protection

• Operation: Intermittent use

IMPORTANT – INTERMITTENT USE ONLY:

This 16A 12V pump is not designed for continuous operation.

The pump must not run continuously for longer than 30 minutes. After 30 minutes of operation, allow the pump to cool back down to ambient temperature before using it again.

Always ensure the pump is installed with a suitable 12V power supply capable of meeting its electrical requirements.

Download Product Manual
