DC Solar Irrigation Pump with MPPT Controller
Power irrigation and water transfer with solar energy
Taxes included. Free shipping over R2,500
Or 4x R 1,440.00 interest-free
* Higher first payment may apply on large purchases
Brushless centrifugal surface pump
MPPT controller included
Available in three sizes
In stock, ready for collection now
- 7-day returns
- Proudly South African
- Door-to-door delivery in SA
Couldn't load pickup availability
Pickup available at 51 Gerhardus Street
Usually ready in 24 hoursFrequently bought together
Description
DC Solar Irrigation Pump with MPPT Controller
Power your irrigation system using solar energy with our DC Solar Irrigation Pump range. Designed for agricultural irrigation and water transfer, these brushless centrifugal surface pumps provide a practical solution for farms, smallholdings, gardens and other areas where reliable water movement is needed.
The range is available in three sizes, allowing you to choose the right combination of flow, pressure and physical pump size for your application. From the compact 550W model delivering up to 6,000 L/h, through to the powerful 1500W option capable of moving up to 50,000 L/h, there is an option for both smaller and higher-volume irrigation systems.
Solar Powered with MPPT Control
Each pump includes an MPPT (Maximum Power Point Tracking) DC controller. The controller helps manage the power supplied by your solar panels so the pump can make effective use of the available solar energy.
The DC brushless motor is designed for solar pumping applications, making these pumps a useful alternative where connecting a conventional AC irrigation pump to mains electricity isn't practical.
Key Features
- Designed for solar-powered irrigation and water transfer
- DC brushless centrifugal surface pump
- Three pump sizes available
- Maximum flow rates from 6,000 to 50,000 L/h
- Maximum heads from 14m to 24m, depending on the model
- MPPT DC controller included with each option
- Suitable for agricultural and general irrigation applications
- Surface-mounted design for convenient installation and access
- Available with 1", 2" or 3" inlet and outlet connections
- 0.6m pump cable
- Three different physical sizes to suit different installation requirements
Ideal For
- Agricultural irrigation
- Farm water transfer
- Garden and landscape irrigation
- Smallholdings
- Water transfer from tanks and reservoirs
- Remote irrigation systems
- Areas where mains electricity is limited or unavailable
Specifications
| Specification | DCPM6-24-48-550 | DCPM21-14-72-750 | DCPM50-17-110-1500 |
|---|---|---|---|
| Power | 550W | 750W | 1500W |
| Voltage | 48V DC | 72V DC | 110V DC |
| Max Flow | 6 m³/h (6,000 L/h) | 21 m³/h (21,000 L/h) | 50 m³/h (50,000 L/h) |
| Max Head | 24m | 14m | 17m |
| Inlet / Outlet | 1" | 2" | 3" |
| Dimensions (L × W × H) | 250 × 168 × 280mm | 380 × 200 × 260mm | 400 × 240 × 325mm |
| Cable Length | 0.6m | 0.6m | 0.6m |
| Controller | MPPT DC Controller | MPPT DC Controller | MPPT DC Controller |

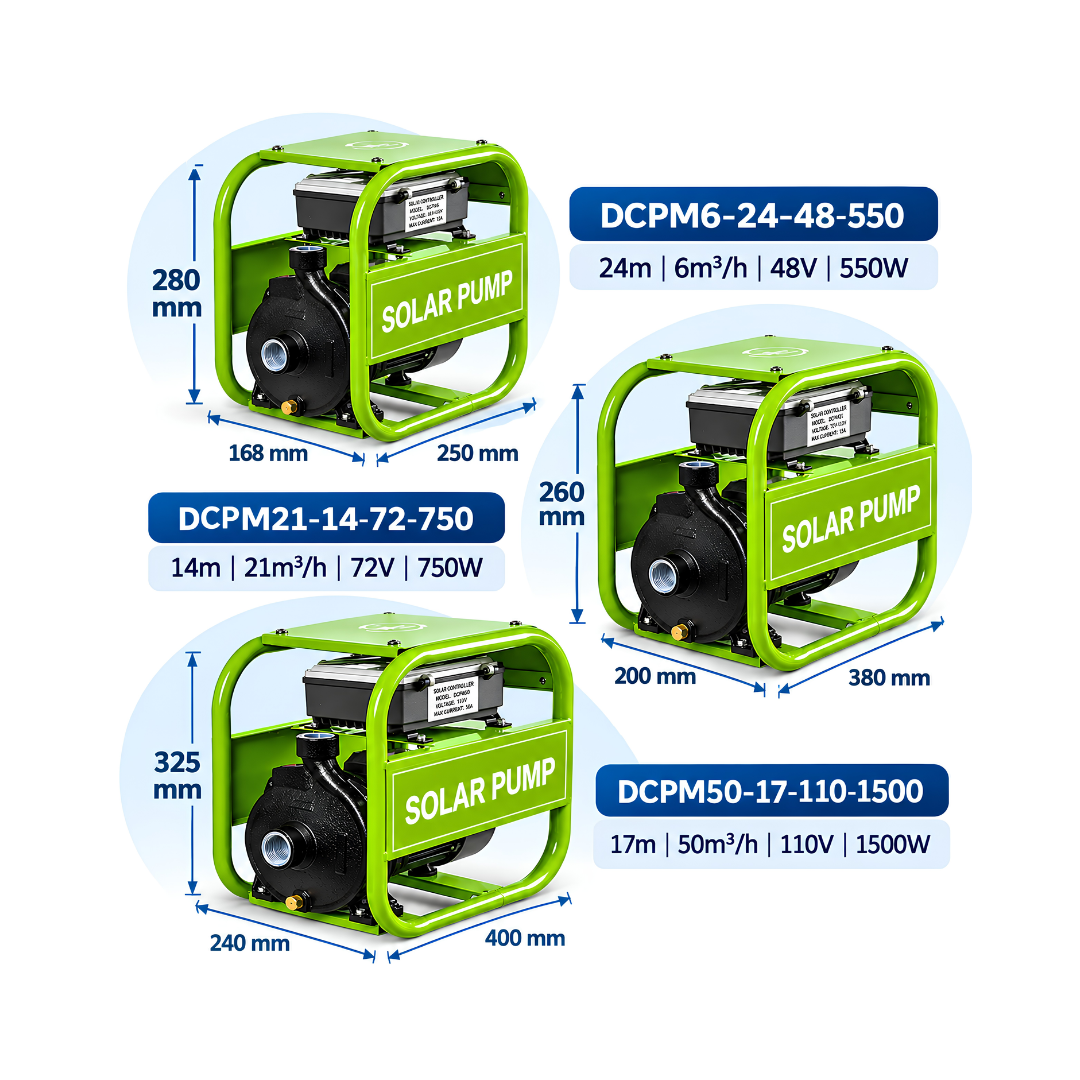

Pump Dimensions
The three models vary in physical size as their pumping capacity increases:
DCPM6-24-48-550: 250mm (L) × 168mm (W) × 280mm (H)
DCPM21-14-72-750: 380mm (L) × 200mm (W) × 260mm (H)
DCPM50-17-110-1500: 400mm (L) × 240mm (W) × 325mm (H)
These measurements are useful when planning your installation area and ensuring there is sufficient space around the pump for piping, the controller and maintenance access.

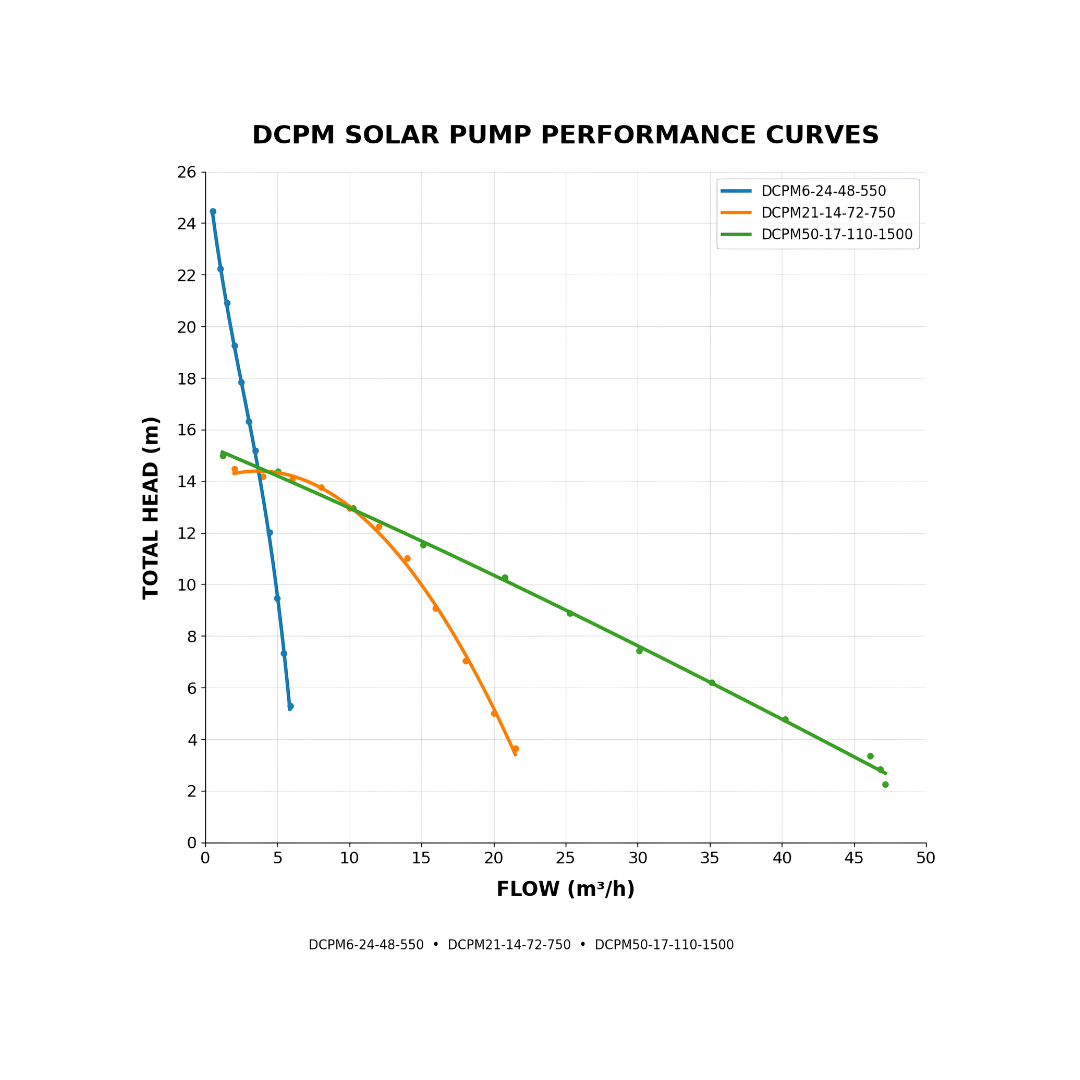

Choosing the Right Option
The 550W model offers the highest maximum head in the range at 24m and is suited to lower-flow applications. The 750W model increases maximum flow considerably to 21,000 L/h, while the 1500W model is the high-volume option, capable of moving up to 50,000 L/h.
Keep in mind that maximum flow and maximum head are separate performance limits and are not normally achieved at the same time. Your required flow rate, pumping height, pipe diameter and pipe run should all be considered when selecting a pump.
Whether you're setting up a new solar irrigation system or looking for an efficient way to transfer water around your property, this DC Solar Irrigation Pump range gives you three practical options to match different water requirements.
