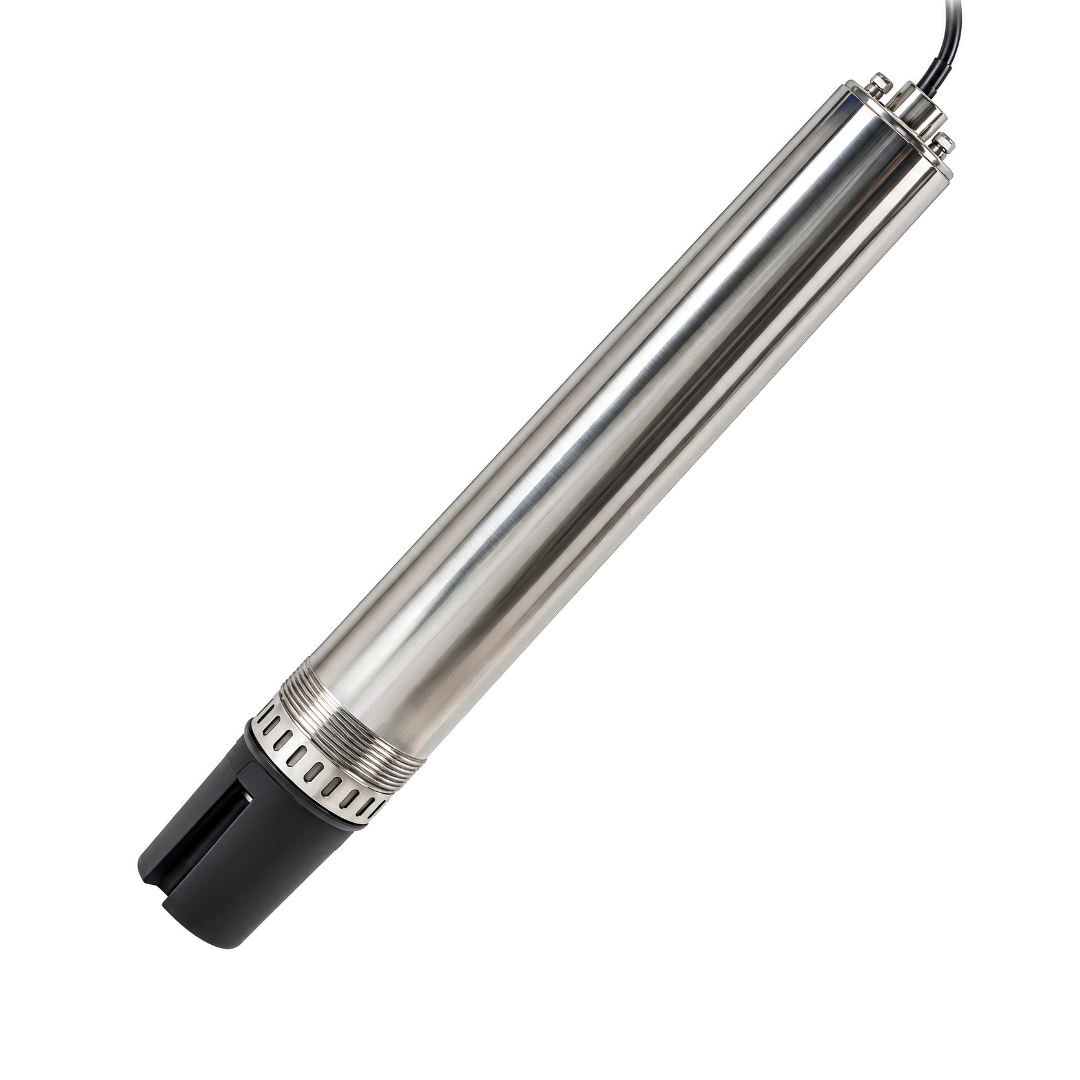

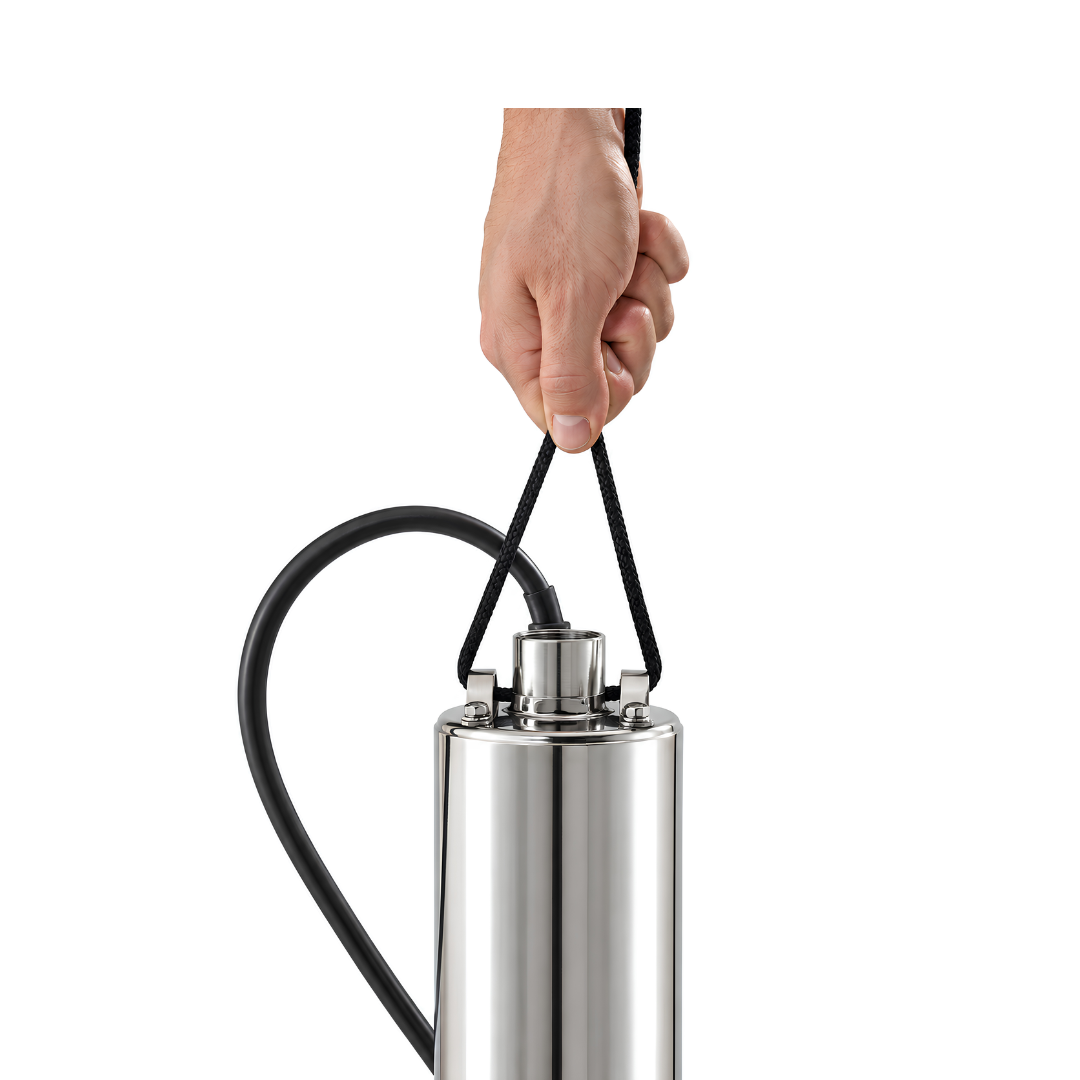

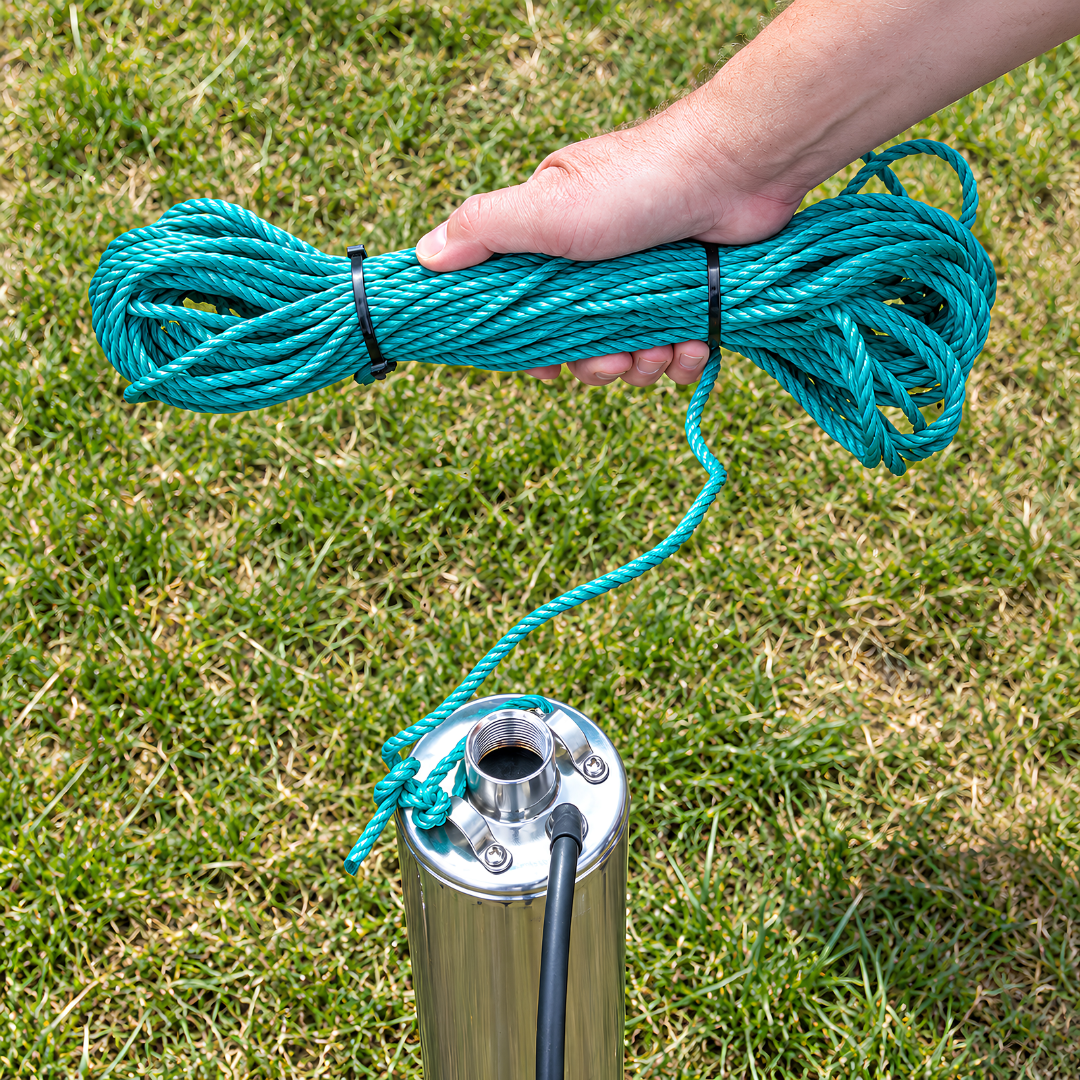

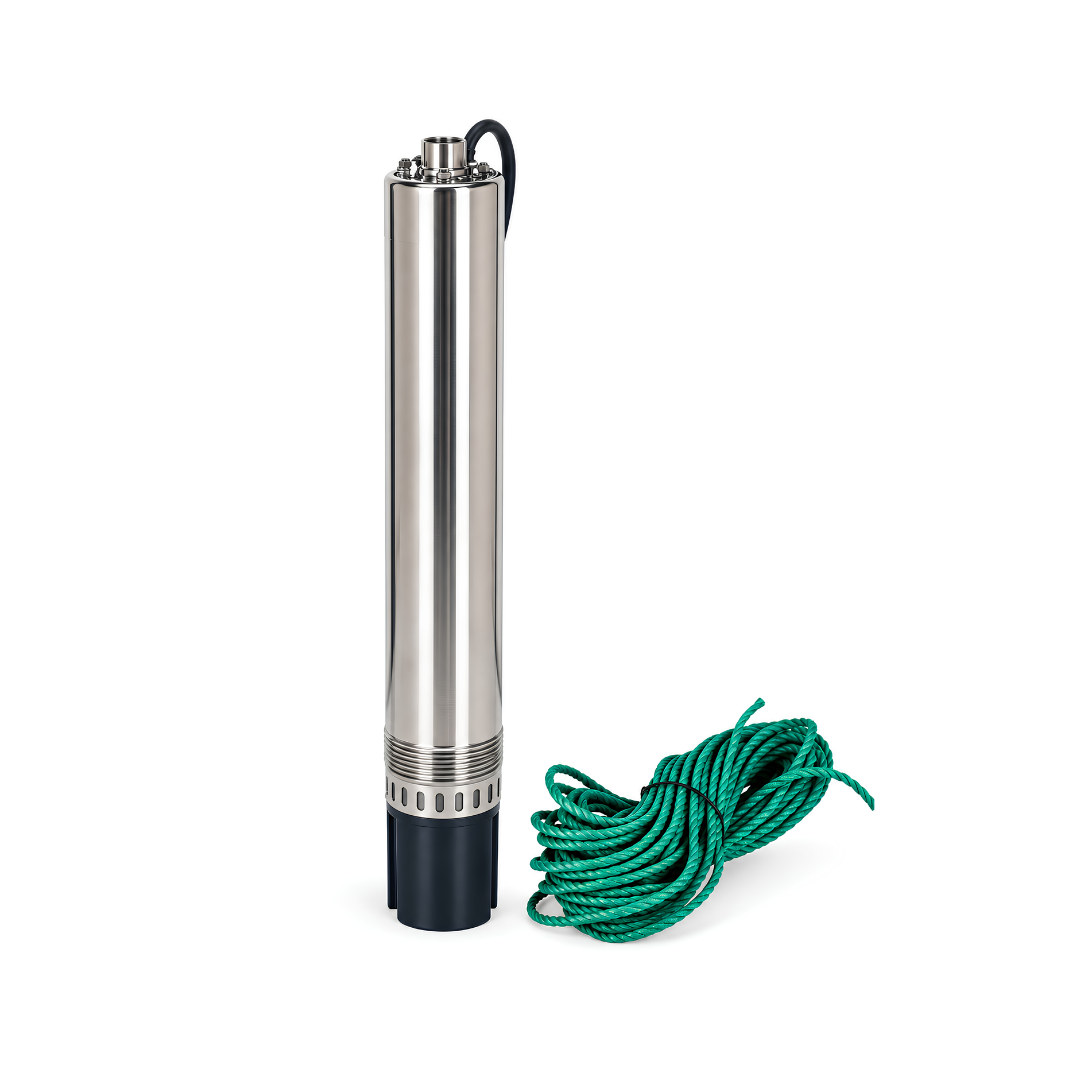

Deep Well Pump 40m Height

Deep Well Pump 40m Height

Reliable Water Supply for Your Home, Garden & Irrigation System

Looking for a practical way to pump water from a well or water storage tank? The Deep Well Pump 40m Height is designed to provide a reliable water supply for household pressure boosting, garden irrigation and general clean-water transfer.

With a maximum pumping height of 40 metres (approximately 4 bar) and a maximum flow rate of 4,500 litres per hour, this submersible water pump is suitable for a variety of domestic water supply applications.

One of its most useful features is its versatility. Not only can it be installed in a suitable deep well, but it can also be used submerged inside a JoJo tank for irrigation or household water pressure boosting.

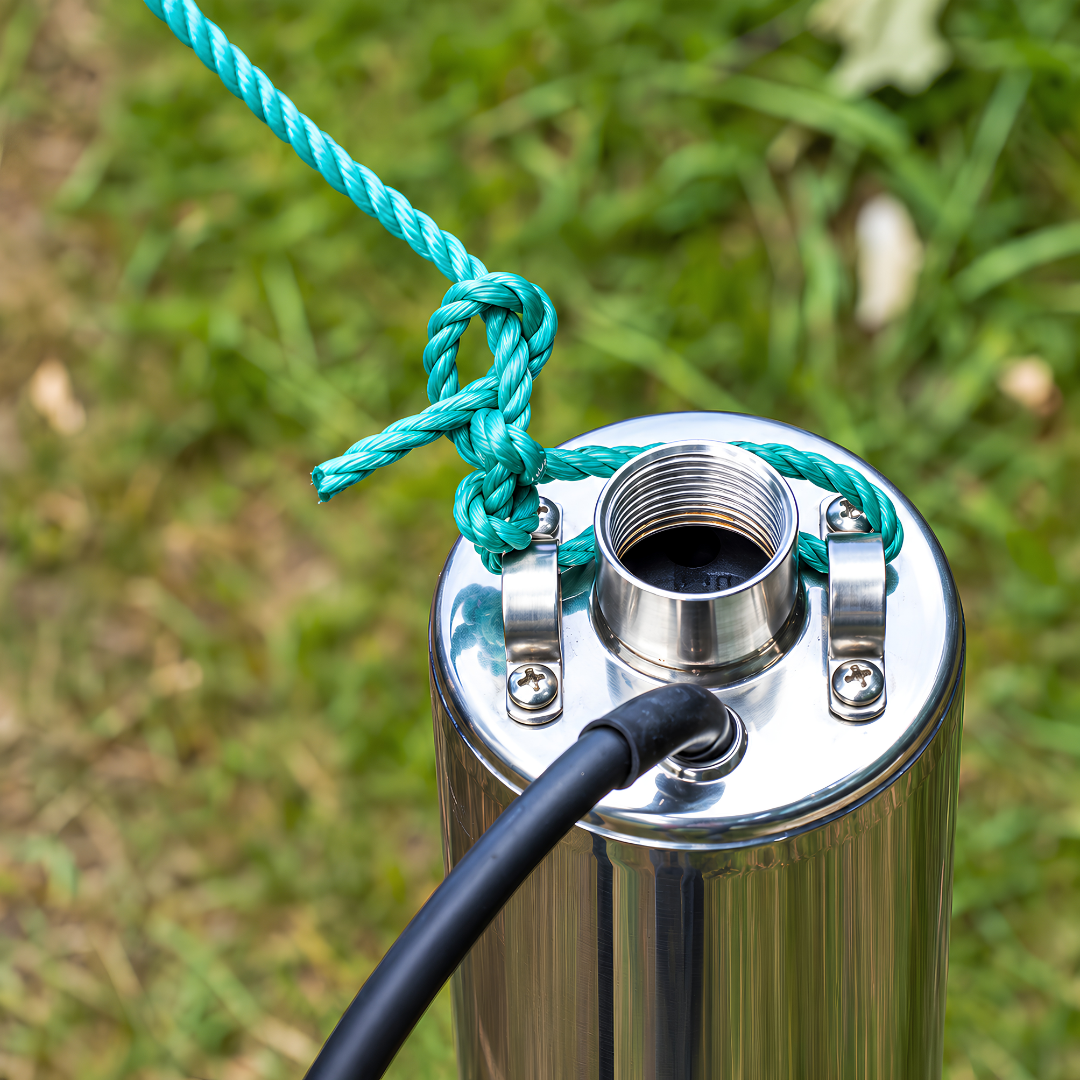

Featuring a durable stainless steel motor cover, copper motor winding and a 20-metre power cable, this pump offers a convenient solution for moving stored or underground water where it's needed.

Why You'll Love It

• Maximum Pumping Height of 40m: Provides up to approximately 4 bar of pressure under maximum-head conditions.

• Maximum Flow Rate of 4,500 L/h: Suitable for domestic water supply, irrigation and clean-water transfer.

• JoJo Tank Compatible: Can be installed submerged in a suitable water storage tank.

• Ideal for Deep Wells: Designed for pumping clean water from compatible wells.

• Household Pressure Boosting: Can be used as part of a suitable home water pressure system.

• Garden Irrigation: Helps supply water to compatible irrigation systems.

• 20m Power Cable: Provides flexibility when positioning the pump.

• Copper Motor Winding: Designed for dependable motor performance.

• Stainless Steel Motor Cover: Features SS202 stainless steel construction.

• Integrated Pre-Filter: Helps protect the water inlet from larger debris.

• Spacer Foot: Helps keep the pump inlet raised above sediment at the bottom of the installation.

• Optional Automatic Control: Can be paired with a compatible DTDS-3 Flow Controller.

Perfect for JoJo Tank Water Supply

Have a JoJo tank that you'd like to use for watering your garden or supplying water to your home?

The Deep Well Pump 40m Height can be installed as a submersible pump inside a suitable JoJo tank, allowing you to pump stored water directly into your water supply system.

This makes it a practical option for:

• Boosting water pressure from a JoJo tank

• Supplying water to household taps

• Watering gardens and lawns

• Feeding compatible irrigation systems

• Transferring clean water from storage tanks

Because the pump operates underwater, it doesn't need to be positioned outside the tank like a conventional surface-mounted booster pump.

Pump Water from Your Own Well

If you have access to a suitable underground water source, this deep well pump can help you make better use of it.

With a maximum immersion depth of 16 metres, the pump can be installed in a compatible well to move clean water to your home, garden or storage system.

Its maximum pumping head of 40 metres makes it useful for installations that require water to be lifted from below ground level.

Actual water delivery will depend on the installation depth, pipework, required pressure and water demand.

Built for Everyday Water Pumping

The pump features a stainless steel motor cover and copper motor winding, providing a durable construction for suitable submersible applications.

Its integrated pre-filter helps prevent larger debris from entering the pump, while the spacer foot raises the water inlet above the bottom surface.

This helps reduce the risk of drawing sediment directly into the pump during operation.

For best results, always install the pump in a suitable clean-water source and ensure it remains adequately submerged.

Ideal Applications

The Deep Well Pump 40m Height is suitable for:

• Deep Well Water Supply: Pump clean water from suitable underground wells.

• JoJo Tank Installations: Supply water directly from a storage tank.

• Household Pressure Boosting: Improve water supply pressure with suitable control equipment.

• Garden Irrigation: Supply water to sprinklers and compatible irrigation systems.

• Domestic Water Transfer: Move clean water between storage tanks and supply points.

• Smallholding Water Supply: Support suitable agricultural and garden watering applications.

Product Specifications

Specification	Details
Product Name	Deep Well Pump 40m Height
Pump Type	Submersible Deep Well Pump
Voltage	230V
Maximum Flow Rate	4,500 L/h
Maximum Pumping Head	40m
Maximum Pressure Equivalent	Approximately 4 Bar
Maximum Immersion Depth	16m
Outlet Size	25mm (1″)
Cable Length	20m
Cable Type	3-Core
Motor Winding	Copper
Motor Cover	SS202 Stainless Steel
Pre-Filter	Integrated
Spacer Foot	Included
Compatible Automatic Controller	DTDS-3 Flow Controller (Optional)

Make Your Pump Automatic with a DTDS-3 Flow Controller

Want your water pump to operate automatically when water is needed?

The Deep Well Pump 40m Height can be paired with a compatible DTDS-3 Flow Controller to automate pump operation.

When correctly installed, the controller can start and stop the pump according to water demand, making it a convenient addition to a household pressure boosting or irrigation setup.

This is particularly useful when supplying water from a JoJo tank to your home.

Please note: The DTDS-3 Flow Controller is an optional accessory and is not included unless specifically stated.

Important Installation Information

• Clean Water Only: Use the pump for suitable clean-water applications.

• Maximum Pumping Height: The 40m rating represents the maximum head. Actual flow decreases as the required lifting height and pressure increase.

• Maximum Immersion Depth: Do not install the pump deeper than the specified 16m immersion limit.

• JoJo Tank Installation: Ensure the pump is correctly positioned and remains adequately submerged during operation.

• Water Supply: Avoid running the pump without sufficient water.

• Electrical Installation: Use a suitable 230V power supply and follow the manufacturer's installation instructions.

• Automatic Operation: A compatible external controller is required if you want automatic operation based on water demand.

Whether you're pumping water from a deep well, supplying your home from a JoJo tank or running a garden irrigation system, the Deep Well Pump 40m Height offers a versatile solution for reliable clean-water pumping.

Need help installing? Drop Us A Line.
