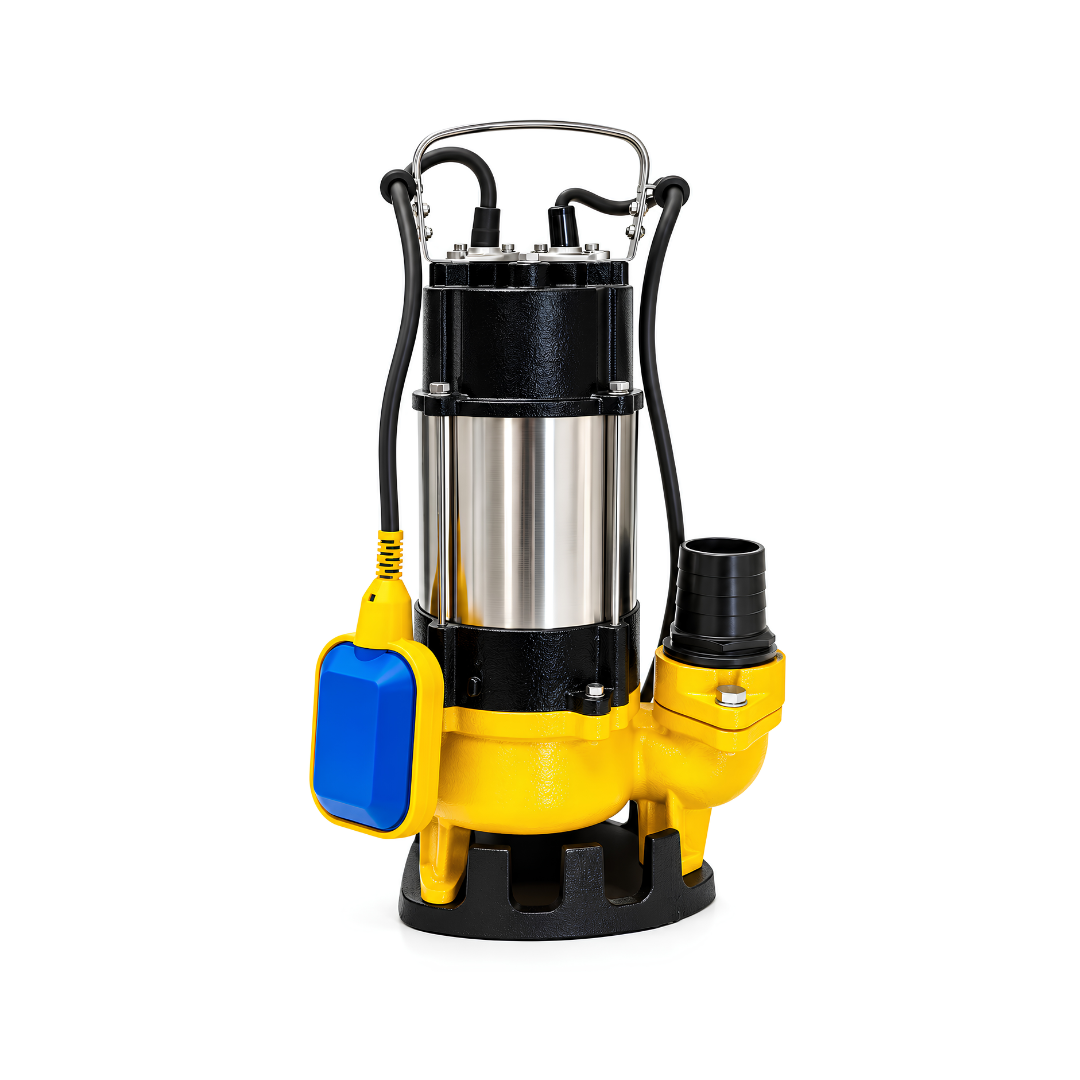

DV180F SUBMERSIBLE SEWAGE DRAINAGE PUMP

DV180F Submersible Sewage Drainage Pump

Compact, Reliable Wastewater Drainage for Homes and Commercial Applications

Need a practical solution for removing unwanted wastewater? The DV180F Submersible Sewage Drainage Pump is designed to help move wastewater and suitable small suspended materials from drainage areas to compatible sewage or wastewater systems.

With a 0.18kW motor, maximum flow rate of 6,000 litres per hour and maximum head height of 7 metres, this compact submersible pump provides dependable performance for intermittent drainage applications.

Its durable construction includes a copper-wound motor, stainless steel welded shaft and built-in thermal protector, helping provide reliable operation while protecting the motor against overheating.

Whether you're dealing with wastewater in a drainage pit, a commercial facility or a suitable residential sewage application, the DV180F offers a convenient way to move unwanted water.

Why You'll Love It

• Maximum Flow Rate of 6,000 L/h – Moves up to 100 litres of water per minute under suitable operating conditions.

• Maximum Head Height of 7m – Suitable for applications requiring wastewater to be lifted to a higher discharge point.

• Compact 0.18kW Motor – Provides efficient performance for smaller drainage applications.

• Designed for Wastewater Drainage – Suitable for transferring wastewater and compatible liquids containing small suspended materials.

• Copper Motor Windings – Designed for dependable motor performance.

• Built-In Thermal Protector – Helps protect the motor against overheating.

• Stainless Steel Welded Shaft – Provides durability for submersible operation.

• IPX8 Protection Rating – Designed for immersion in water within the specified operating limits.

• Maximum Immersion Depth of 5m – Suitable for compatible submerged drainage installations.

• Versatile Applications – Can be used in suitable residential, commercial, agricultural and industrial drainage systems.

Designed for Wastewater Removal

Not all water pumps are suitable for wastewater applications.

The DV180F Submersible Sewage Drainage Pump is designed to handle wastewater and compatible liquids containing small suspended materials.

This makes it useful for drainage applications where water needs to be transferred away from collection areas and into a suitable wastewater or sewage system.

Its submersible design allows the pump to operate directly in the liquid being transferred, making it a practical option for drainage pits and collection areas.

Please Note: The pump's maximum permitted solid particle size has not been specified. Confirm the solids-handling capacity before using it for sewage containing larger debris or solids.

Built for Reliable Performance

The DV180F includes several features designed to support dependable operation.

Copper-Wound Motor

The motor features copper windings for reliable electrical performance.

Built-In Thermal Protection

An integrated thermal protector helps protect the motor against overheating during operation.

Stainless Steel Welded Shaft

The stainless steel shaft provides durability for use in compatible wastewater environments.

IPX8 Protection Rating

The pump is designed for submerged operation, with a maximum stated immersion depth of 5 metres.

Ideal Applications

• Residential Wastewater Drainage – Transfer compatible wastewater from domestic drainage areas.

• Commercial Drainage – Remove wastewater from suitable commercial facilities.

• Construction Site Drainage – Pump compatible collected water from construction areas.

• Industrial Wastewater Transfer – Assist with suitable factory and industrial drainage applications.

• Drainage Pits – Remove accumulated wastewater from collection points.

• Municipal Drainage Systems – Suitable for compatible drainage and wastewater transfer installations.

• Agricultural Drainage – Transfer suitable wastewater or collected water in agricultural applications.

• Irrigation Drainage – Remove excess water from compatible drainage systems.

Product Specifications

Specification	Details
Product Name	DV180F Submersible Sewage Drainage Pump
Model	DV180F
Product Type	Submersible Sewage Drainage Pump
Motor Power	0.18kW (180W)
Maximum Flow Rate	6,000 L/h (100 L/min)
Maximum Head Height	7m
Inlet Size	20mm
Maximum Immersion Depth	5m
Maximum Liquid Temperature	40°C
Liquid pH Range	4–10
Motor Windings	Copper
Motor Protection	Built-In Thermal Protector
Shaft	Stainless Steel Welded Shaft
Insulation Class	B
Protection Rating	IPX8
Weight	9.5kg
Duty Type	Intermittent Use – Not Suitable for Continuous Operation

Understanding Flow Rate & Head Height

When choosing a wastewater drainage pump, it's important to understand how flow rate and head height affect performance.

• Maximum Flow Rate (6,000 L/h): The highest stated water flow under low-resistance conditions.

• Maximum Head Height (7m): The maximum height the pump can lift water, at which the flow rate approaches zero.

As the pumping height increases, the available flow rate generally decreases.

Actual performance will also depend on the pipe diameter, pipe length, bends and fittings used in your installation.

Please Note: The pump will not deliver its maximum flow rate at its maximum head height.

Installation & Important Information

• Not Suitable for Continuous Use: The DV180F is intended for intermittent drainage applications and should not be operated continuously.

• Ensure the pump is correctly submerged during operation.

• Do not exceed the maximum immersion depth of 5 metres.

• The maximum liquid temperature must not exceed 40°C.

• Only pump compatible liquids within the specified pH range of 4–10.

• Keep the pump inlet clear of oversized debris and obstructions.

• Confirm the pump's solids-handling capacity before using it for sewage containing solid waste.

• Ensure all electrical connections are correctly installed and protected.

• Regularly inspect and clean the pump to maintain efficient operation.

A Practical Solution for Wastewater Drainage

The DV180F Submersible Sewage Drainage Pump offers a compact and convenient solution for intermittent wastewater removal.

With its 6,000 L/h maximum flow rate, 7m maximum head height, copper-wound motor, stainless steel shaft and built-in thermal protection, it's designed to make suitable drainage and wastewater transfer jobs easier.

A practical choice for residential, commercial and industrial applications requiring a compact submersible wastewater pump.
