FLAT MOUTH BRASS FOUNTAIN NOZZLES

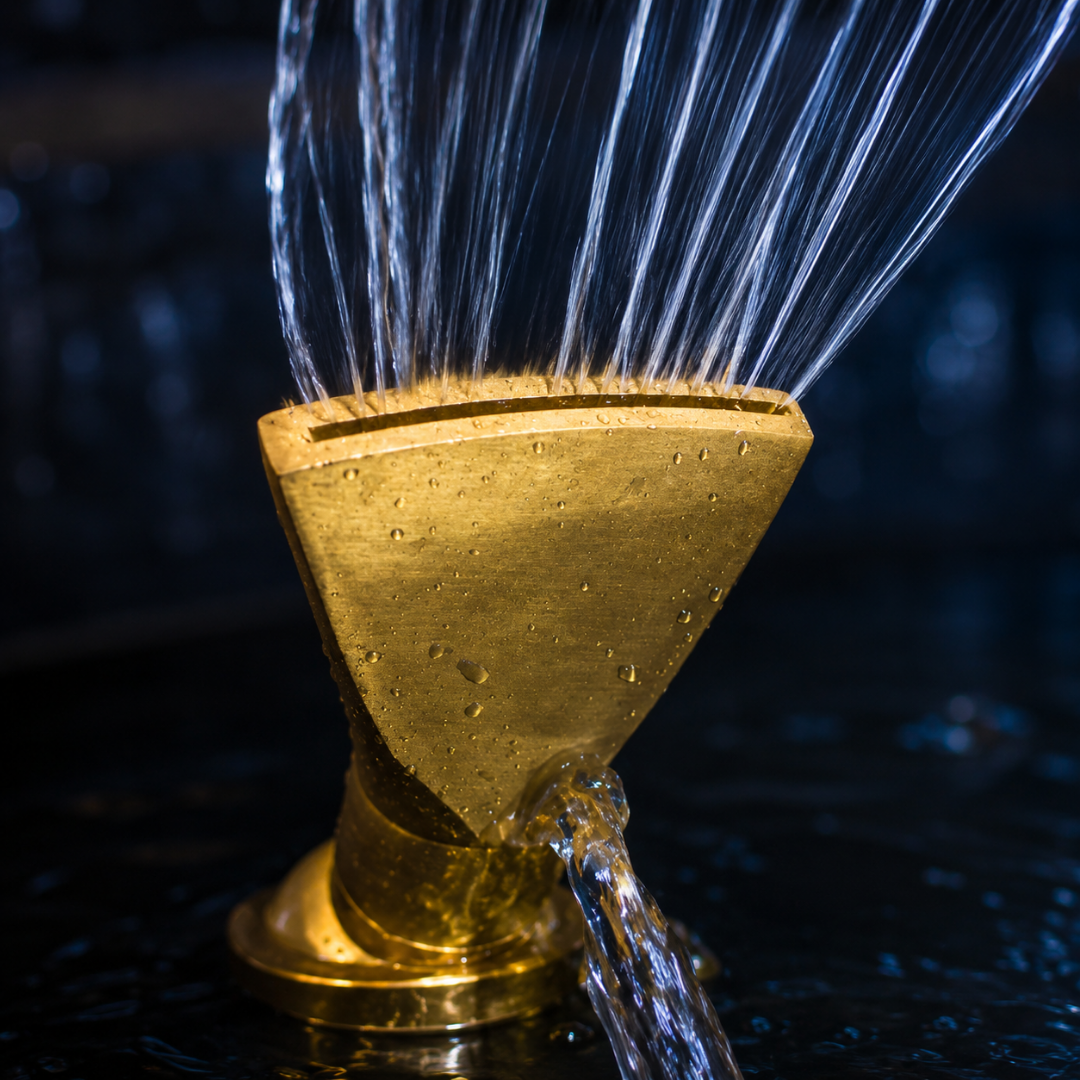

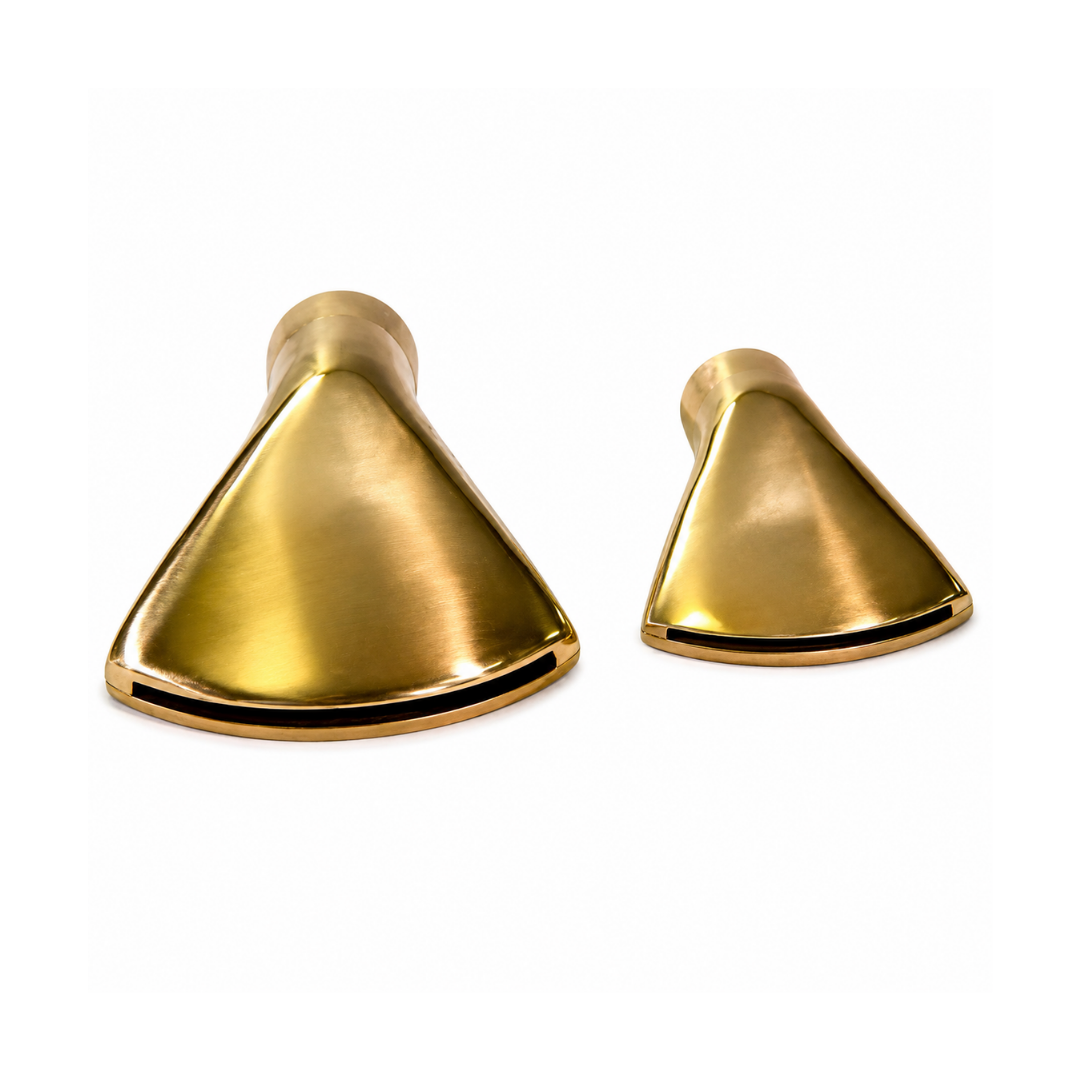

Flat Mouth Brass Fountain Nozzle

Create a stunning fan-shaped water display with the Flat Mouth Brass Fountain Nozzle.

Designed to produce a wide, flat sheet of water, this fountain nozzle creates an elegant fan-shaped spray that adds movement and visual impact to ponds, fountains and decorative water features.

The distinctive water-film effect makes these nozzles particularly effective when used individually or combined with multiple nozzles to create larger, more dramatic fountain displays.

Add underwater pond lighting to illuminate the water spray at night and create a striking, colourful fountain effect.

Why Choose a Flat Mouth Fountain Nozzle?

• Fan-shaped water effect – Produces a wide, flat sheet or film of water.
• Elegant fountain display – Creates a distinctive and eye-catching water pattern.
• Adjustable direction – Allows you to direct the fan-shaped spray to suit your fountain design.
• Combine multiple nozzles – Use several nozzles together to create larger and more dramatic water displays.
• Durable brass construction – Designed for fountain and water feature applications.
• Ideal for lighting effects – Pair with underwater fountain lights to create an impressive illuminated display at night.
• Three connection sizes – Available in 20mm, 25mm and 40mm options.

Create a Fan-Shaped Water Display

Unlike a traditional straight-flow fountain nozzle, the Flat Mouth Fountain Nozzle spreads the water into a broad, flat spray.

This creates a distinctive fan or water-film effect that works particularly well as a focal point in garden ponds, decorative fountains and larger water features.

The adjustable direction also gives you flexibility when positioning the spray. Install a single nozzle for a simple feature or combine several nozzles to create symmetrical or layered water patterns.

Add Underwater Lighting for a Dramatic Night-Time Effect

For an even more impressive display, combine the Flat Mouth Brass Fountain Nozzle with underwater pond or fountain lights.

When illuminated from below, the fan-shaped water spray catches the light and creates a striking visual effect, making your fountain a feature that can be enjoyed both during the day and at night.

Available Models

Model	Connection	Pressure	Capacity	Fountain Height
HR11.3/4″ (FM20)	20mm	60 kPa	3–4 m³/h	0.2–0.6m
HR11.1″ (FM25)	25mm	60 kPa	4–8 m³/h	0.3–0.8m
HR11.1.5″ (FM40)	40mm	100 kPa	6–10 m³/h	0.4–1m



Fountain Nozzle Specifications

• Product: Flat Mouth Brass Fountain Nozzle
• Material: Brass
• Connection sizes: 20mm, 25mm and 40mm
• Spray pattern: Fan-shaped / flat water film
• Direction: Adjustable
• Pressure: 60–100 kPa depending on model
• Flow capacity: 3–10 m³/h depending on model
• Height: Approximately 0.2–1m depending on model
• Weight: 1.02 kg
