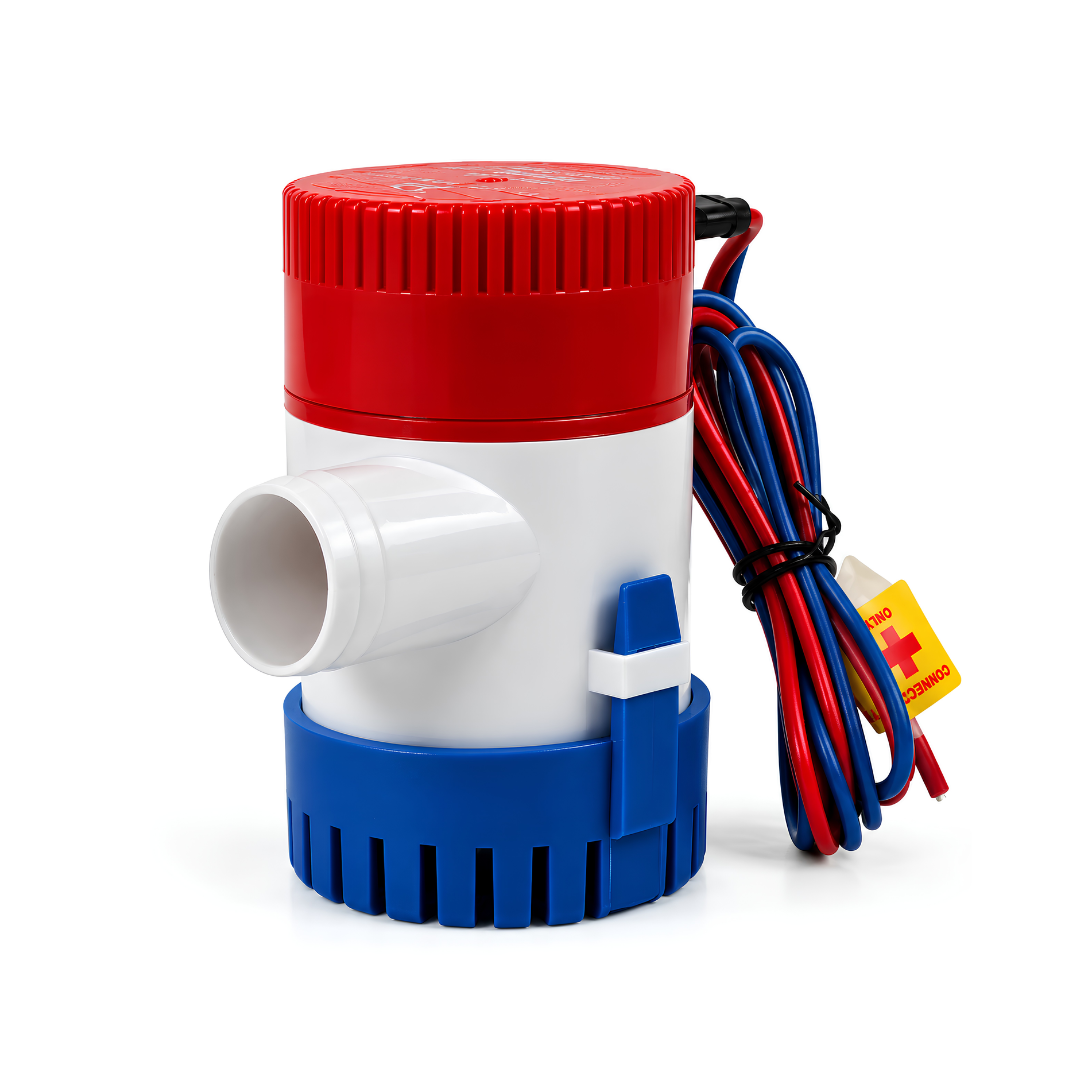

NON-AUTOMATIC FULLY SUBMERSIBLE 12 VOLT DC BILGE PUMP SOLAR POWERED PUMP

Non-Automatic fully submersible 12 volt DC bilge pump Solar Powered

Keep unwanted water under control with this compact 12V DC fully submersible bilge pump, designed for drainage and water removal in boats and other suitable 12V applications.

With a maximum flow rate of 2000L/h and a maximum head of 3.8 metres, this small but efficient pump provides reliable water removal while keeping power consumption and installation space to a minimum.

The pump is non-automatic, meaning it needs to be switched on and off manually. If automatic operation is required, a compatible 12V float switch can be added separately to activate the pump according to the water level.

Its compact design, 20mm outlet and easy-clean snap-lock strainer make it particularly useful for smaller craft where space is limited.

Ideal For:

• Small boats and watercraft

• Bilge water removal

• Marine drainage applications

• Removing accumulated water

• Suitable 12V drainage systems

• Compact water removal installations

Performance:

• Maximum Flow: 2000L/h

• Maximum Head: 3.8m

• Voltage: 12V DC

• Current: 2.5A / 1.5A

• Outlet: 20mm

• Operation: Non-Automatic

• Installation: Fully Submersible

Features:

• Compact 12V DC bilge pump

• Maximum flow of 2000L/h

• Maximum head of 3.8m

• 20mm outlet

• Fully submersible design

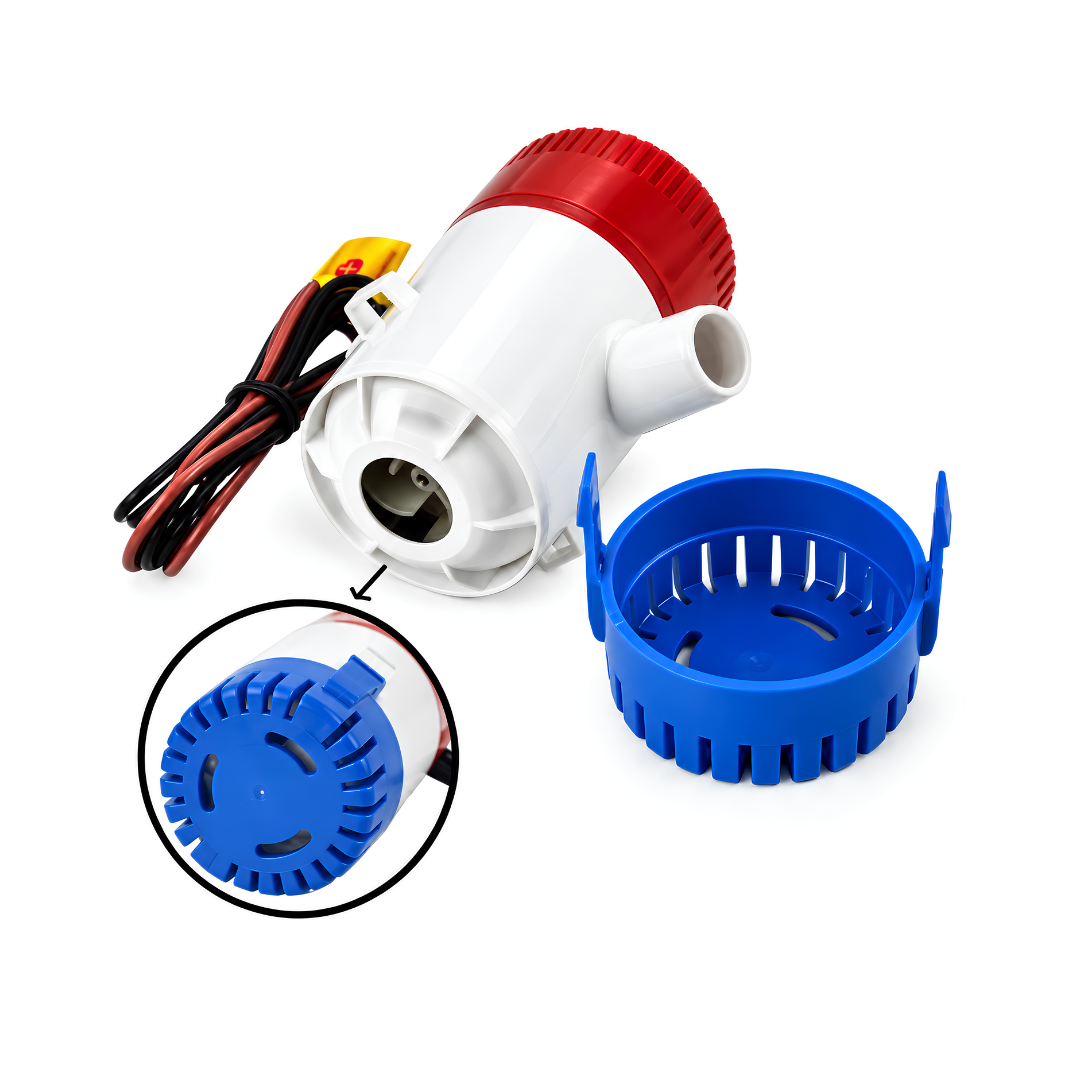

• Easy-clean snap-lock strainer

• Quiet, low-vibration operation

• Anti-airlock protection

• Compact design for smaller installations

• Efficient long-life motor

• Marine-grade blocked wiring

• Ignition protection

• Protection against rust and corrosion

• Designed to tolerate dry running

• Can be paired with a compatible 12V float switch for automatic operation

Optional Automatic Operation

This model is supplied as a non-automatic bilge pump. For applications where you want the pump to activate automatically as the water level rises, a compatible 12V float switch can be installed separately.

This allows you to create an automatic bilge drainage setup while still using the same compact 12V pump.

Important Operating Information

Please note: Due to the characteristics of DC motors, this pump is not designed for continuous or prolonged operation. It should be used for intermittent drainage applications rather than running non-stop.

With its 2000L/h maximum flow, 3.8m head and compact fully submersible design, this 12V DC bilge pump is a practical solution for removing unwanted water where space and power availability are limited.

Need help installing? Drop Us A Line.
