PRESSURE DIAPHRAGM PUMP 5.5L/M 11BAR 220VOLT

Pressure Diaphragm Pump. 5.5L/m, 11bar, 220volt

High-Pressure Water Pump for Cleaning, Spraying & Water Transfer

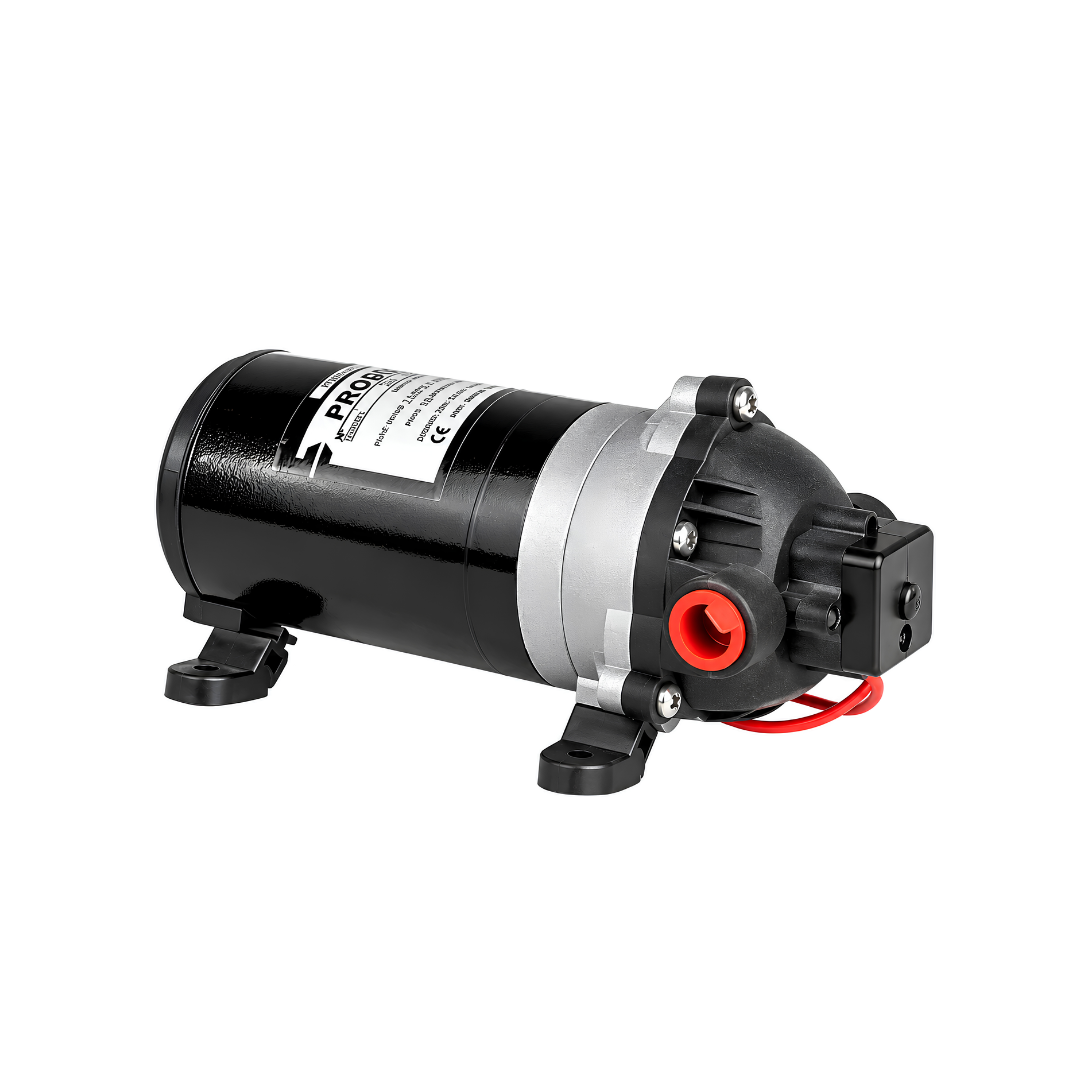

Need a compact water pump that delivers powerful pressure? The XDP160 M High Pressure Diaphragm Water Pump is designed for applications where strong water pressure and controlled water flow are essential.

Operating on a 220V AC power supply, this pump delivers a maximum pressure of 11 bar (160 PSI) and a maximum flow rate of 5.5 litres per minute.

It's a practical choice for portable car washing equipment, carpet cleaning machines, agricultural sprayers, patio misting systems and other compatible high-pressure water applications.

The pump features an automatic pressure switch, allowing it to start and stop according to pressure changes in the system. Its compact design, rubber mounting feet and self-priming capability make it convenient to incorporate into suitable pumping setups.

Why You'll Love It

• High-Pressure Performance: Delivers up to 11 bar (160 PSI) for suitable cleaning and spraying applications.

• 5.5 L/min Maximum Flow Rate: Provides controlled water delivery for compatible equipment.

• 220V AC Operation: Designed for a compatible mains electrical supply.

• Automatic Pressure Switch: Starts and stops the pump according to system pressure.

• Self-Priming Up to 1 Metre: Can draw water from a suitable source positioned below the pump.

• Three-Diaphragm Design: Designed to deliver consistent pumping performance.

• Viton Seals: Suitable for compatible liquids within the manufacturer's stated pH range.

• Stainless Steel Shaft: Provides durability for high-pressure pumping applications.

• Rubber Mounting Feet: Help reduce vibration and operating noise.

• Compact Design: Convenient for installations where space is limited.

• Dry-Run Capability: Designed to tolerate dry running under suitable operating conditions.

Ideal Applications

The XDP160 M 220V High Pressure Diaphragm Pump can be used in a variety of compatible applications, including:

• Portable Car Washing Equipment: Supply pressurised water to suitable vehicle cleaning systems.

• Carpet Cleaning Machines: Provide water pressure for compatible cleaning equipment.

• Agricultural Sprayers: Deliver pressurised liquid to suitable spraying systems.

• Patio Misting Systems: Supply high-pressure water to compatible misting equipment.

• Cleaning & Sweeping Equipment: Support water delivery in suitable cleaning machines.

• General Water Transfer: Move water between compatible containers or equipment.

Always ensure the pump's pressure, flow rate and material compatibility match your intended application.

Automatic Pressure Control

The XDP160 M features an automatic pressure switch that helps control the pump according to water demand.

When pressure drops, the switch activates the pump. As pressure builds to the required shut-off level, the switch stops the motor.

This makes it useful for applications where water flow is controlled by a trigger, valve or other suitable outlet.

Important: The system must be free from leaks. Small leaks or poorly sealing fittings can cause the pump to switch on and off repeatedly, potentially damaging the pressure switch and motor.

High Pressure in a Compact Design

With a maximum pressure of 11 bar (160 PSI), this diaphragm pump is designed for applications requiring more pressure than a standard low-pressure transfer pump.

Its three-diaphragm design provides pumping action, while the stainless steel shaft and Viton seals support use in suitable demanding applications.

The pump also features rubber mounting feet to help minimise vibration during operation.

Product Specifications

Specification	Details
Model	XDP160 M
Product Type	High-Pressure Diaphragm Water Pump
Power Supply	220V AC
Maximum Flow Rate	5.5 L/min (330 L/h)
Maximum Pressure	11 Bar (160 PSI)
Current	0.6 A
Maximum Self-Priming Lift	1 m
Pump Design	Three-Diaphragm
Pressure Control	Automatic Pressure Switch
Hose Connection	3/8" (10 mm) Hose Barb
Shaft Material	Stainless Steel
Seal Material	Viton
Stated Liquid pH Range	pH 4–11
Mounting	Rubber Feet
Weight	4 kg
Dimensions	25 × 12 × 7 cm

Installation & Operating Guidelines

For reliable performance, it's important to install and operate the pump correctly.

• Secure Hose Connections: Use suitable hose clamps to secure the tubing, as the pump operates at high pressure.

• Use High-Pressure Hose: Ensure all hoses, fittings and connected components are rated for the operating pressure.

• Vertical Installation: Mount the pump vertically as recommended.

• Flexible Hose: Use suitable flexible high-pressure hose to help minimise vibration transfer.

• Avoid Kinked Pipes: Keep hoses free from sharp bends and restrictions.

• Prevent Leaks: Check all fittings, valves and connections to prevent repeated pump cycling.

• Avoid Frequent Starting & Stopping: Excessive cycling can shorten the life of the pressure switch and motor.

• Correct Voltage: Use a stable, compatible electrical supply.

• Avoid Continuous Operation: The pump is not intended for unrestricted continuous-duty use.

• Dry Running: Although the pump is described as having dry-run capability, avoid unnecessary extended dry running.

Important Information

This is a high-pressure diaphragm pump, so correct installation and system compatibility are essential.

Ensure that the connected equipment, hoses and fittings can safely withstand the pump's pressure. Do not operate the pump against blocked or restricted pipework beyond the manufacturer's recommended limits.

The pump's stated 11 bar maximum pressure and 5.5 L/min maximum flow rate are maximum performance figures and should not be assumed to occur simultaneously.

For cleaning, spraying and compatible water transfer applications, the XDP160 M 220V Diaphragm Pump offers a compact solution with strong pressure, automatic control and convenient self-priming operation.

Need help installing? Drop Us A Line.
