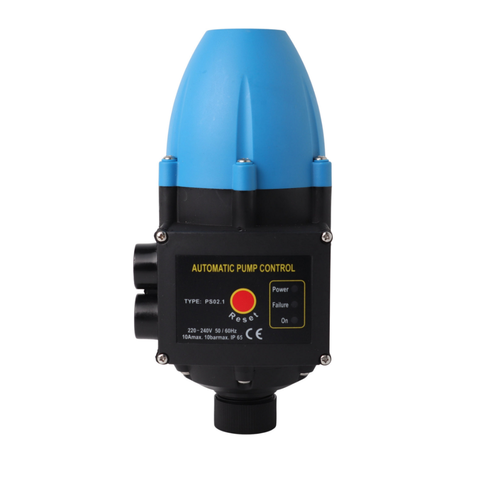

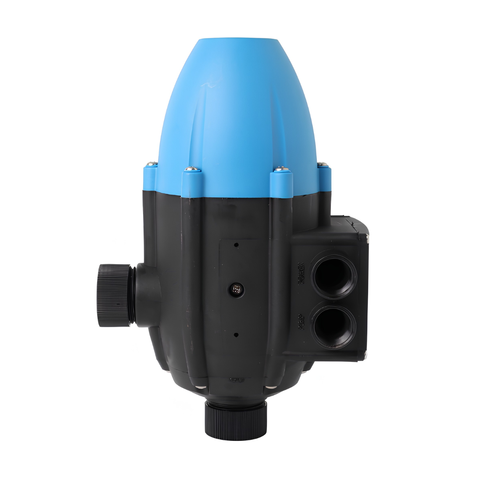

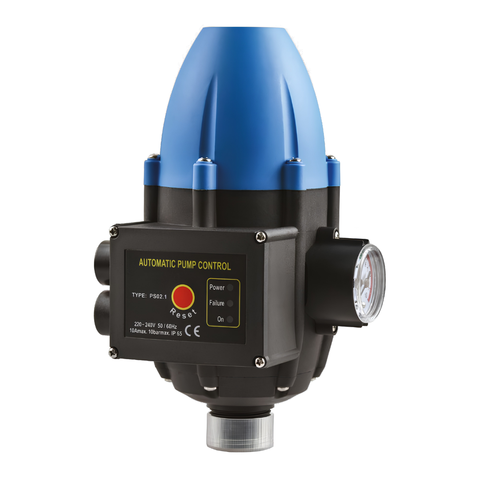

AUTOMATIC PRESSURE SWITCH

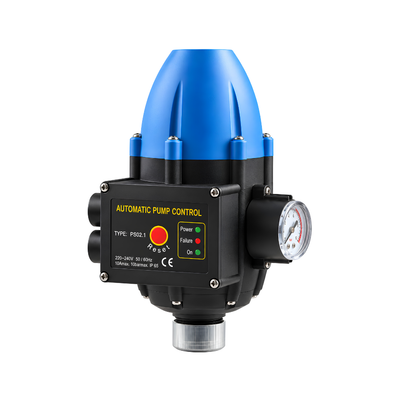

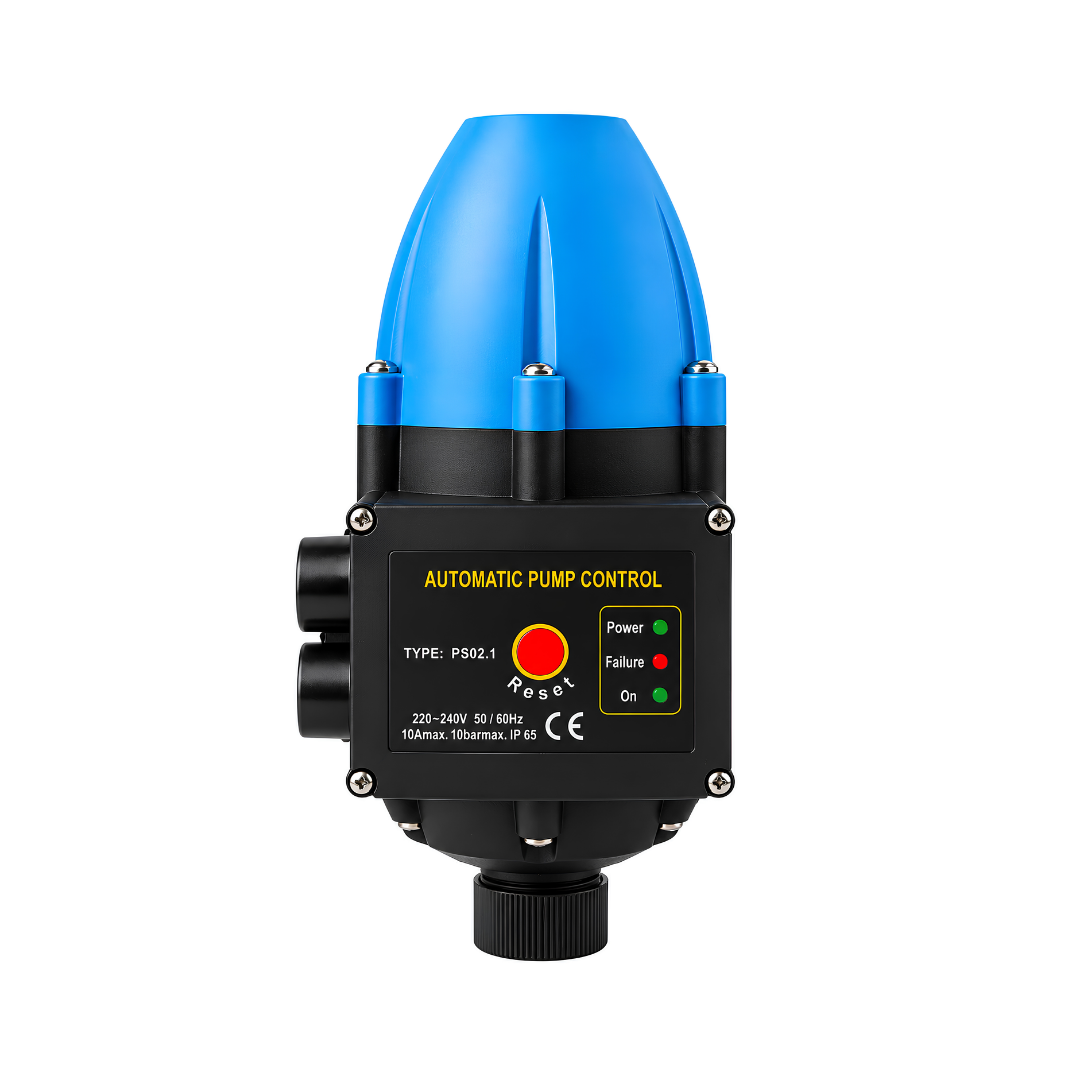

AUTOMATIC PUMP CONTROLLER

Enjoy Automatic Water Pressure Without the Hassle!

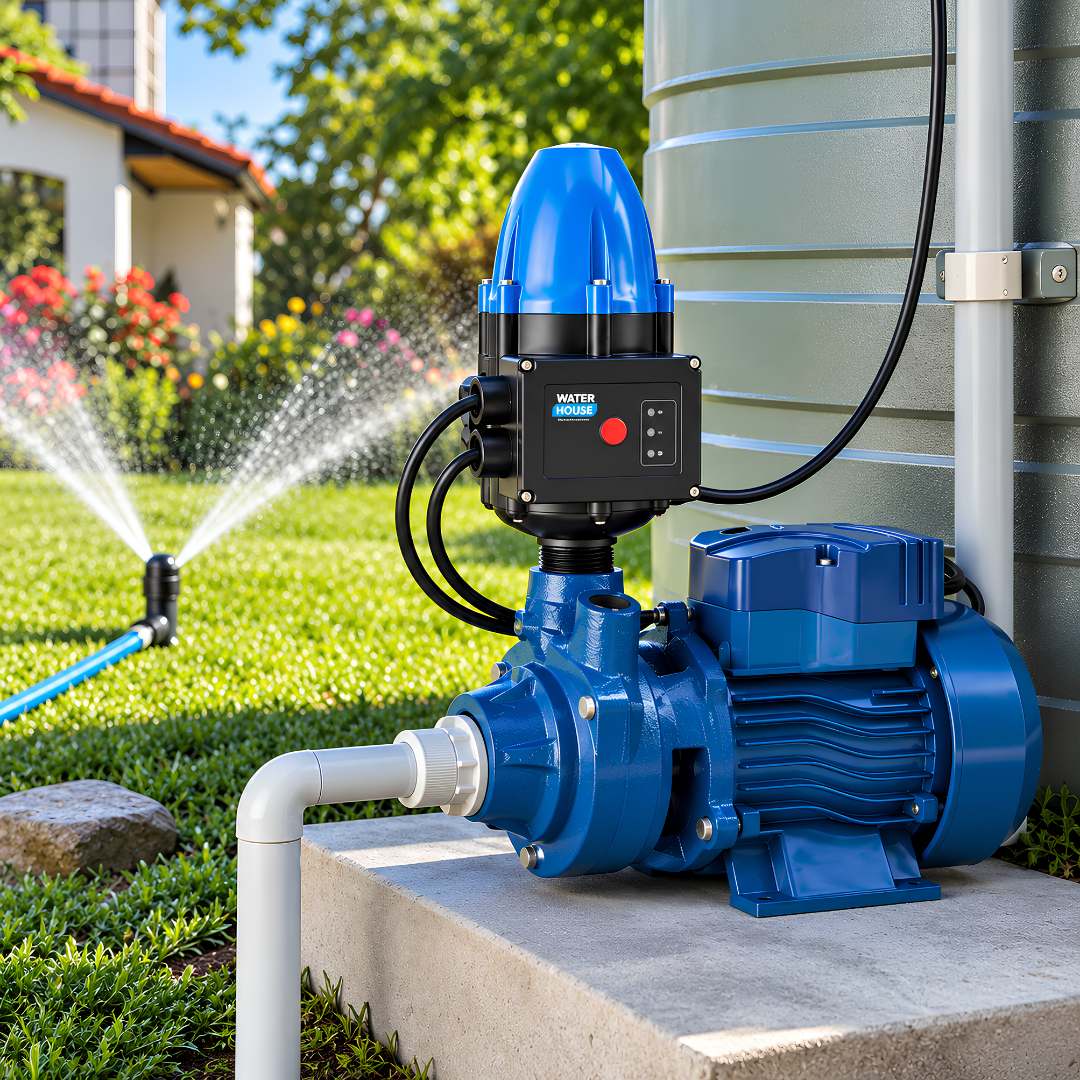

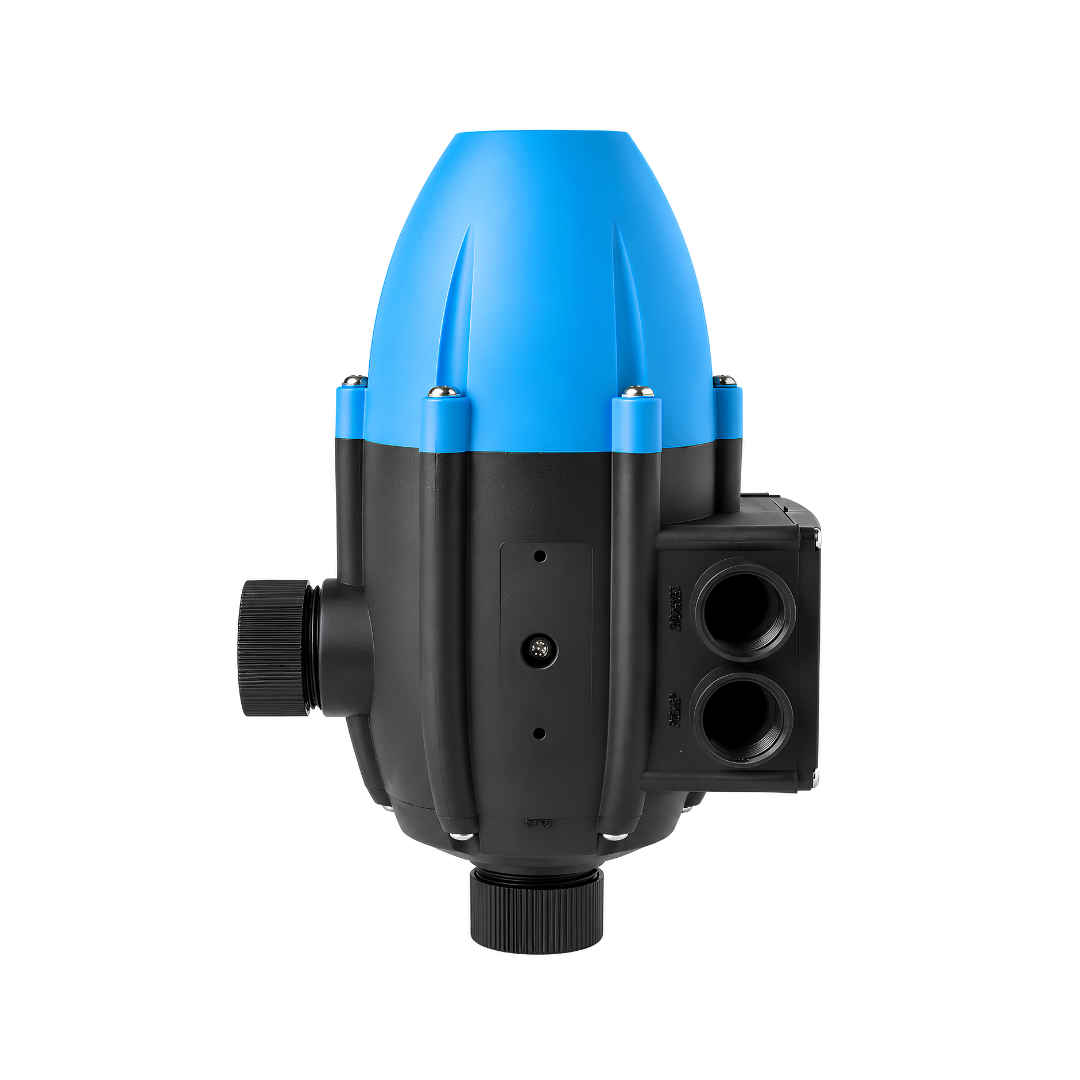

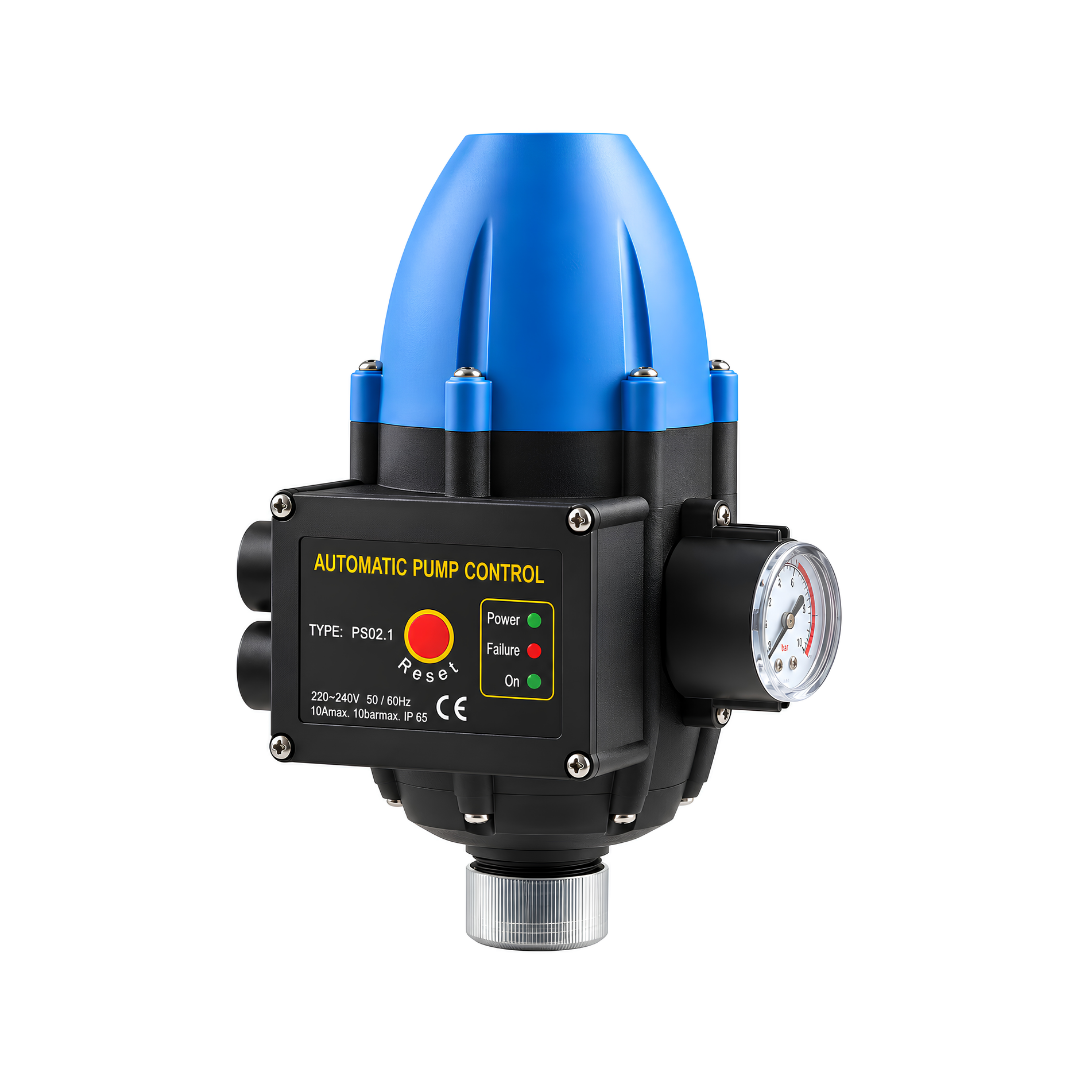

Tired of switching your water pump on and off manually? The Automatic Pump Controller (DTDS-3) makes managing your water supply easier by automatically starting and stopping your pump whenever you open or close a tap.

Designed for residential, garden, agricultural and light industrial applications, this electronic pump controller helps maintain a steady water supply while reducing unnecessary pump cycling.

It also features built-in dry-run protection and a non-return valve, helping protect your pump and keep your water system operating efficiently.

Why You'll Love It

• Automatic Pump Operation: Starts your pump when a tap opens and stops it when water demand ends.

• Steady Water Supply: Helps maintain consistent water flow and pressure while your pump is running.

• Reduces Pump Cycling: Helps prevent frequent starts and stops that can cause unnecessary wear on your pump.

• Built-In Dry-Run Protection: Helps protect your pump from running without sufficient water.

• Integrated Non-Return Valve: Helps prevent water from flowing backwards through the system.

• Adjustable Starting Pressure: Allows you to adjust the pump's activation pressure to suit your setup.

• Manual Reset Button: Features a RESET switch for manually restarting the controller when required.

• IP65 Protection: Designed to resist dust and water jets, making it suitable for appropriately protected installations.

Ideal For

• Household water pressure boosting

• Residential and rural water supply systems

• Garden irrigation

• Water tank supply systems

• Small-scale agricultural applications

• Light industrial water systems

• Compatible centrifugal pumps up to 1.1kW (1.5HP)

Product Specifications

Specification	Details
Model	DTDS-3
Product Type	Automatic Electronic Pump Controller
Voltage	240V
Frequency	50Hz
Maximum Current	10A
Maximum Motor Power	1.1kW (1.5HP)
Starting Pressure	1.5 Bar (Adjustable)
Maximum Working Pressure	10 Bar
Connection Size	1″ (25mm)
Protection Rating	IP65
Maximum Temperature	60°C
Manual Reset	Yes
Dry-Run Protection	Yes
Built-In Non-Return Valve	Yes

How Does It Work?

The Automatic Pump Controller takes care of starting and stopping your water pump based on water demand.

1. Open a Tap: When the water pressure drops to the controller's starting pressure, it automatically switches the pump on.

2. Water Flows: The pump supplies water while the tap remains open, helping maintain steady flow and pressure.

3. Close the Tap: Once water demand stops, the controller automatically switches the pump off.

4. Dry-Run Protection: If the water supply runs out, the controller helps protect the pump by stopping operation.

Important Pressure Requirements

The controller has a starting pressure of 1.5 Bar, which can be adjusted using the built-in adjustment screw.

For the controller to operate correctly, your pump must be capable of producing at least 0.6 Bar more than the selected starting pressure.

For example:

• Starting Pressure: 1.5 Bar

• Minimum Required Pump Pressure: Above 2.1 Bar

Please Note: This controller manages the pump's starting pressure but does not increase the maximum pressure your pump can produce. The actual operating pressure depends on your pump's performance and the water system.

A Smarter Way to Manage Your Water Pump

Whether you're boosting household water pressure, running a garden irrigation system or managing a rural water supply, the Automatic Pump Controller DTDS-3 offers a convenient way to automate your pump.

With automatic operation, adjustable starting pressure and built-in pump protection, it's a practical addition to a compatible water pumping system.

Please Note: Product appearance may vary slightly from the image shown. Images are for reference purposes only.

Download Product Manual
