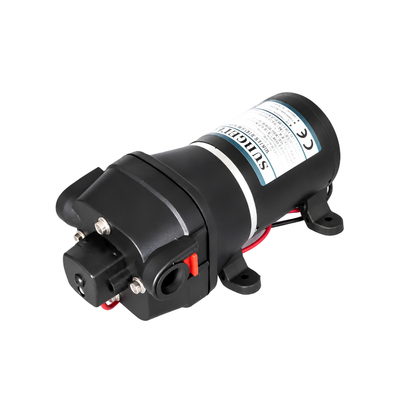

12 volt self priming pressure diaphragm pump 13.2l/m fl35

XC-SP 006/ FL35 12 Volt Water Pump.

• Max Flow Rate: 12,5L/min. (3,3 GPH)
• Max Static Lift: 24M. (35psi) or 2,4bar
• Rated Voltage: 12V.
• Diaphragm Pump.
• Amps: 7 amp.

Compact Automatic Demand Diaphragm Pump.

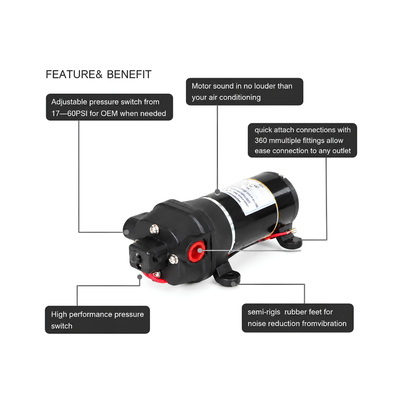

Features:

• Self Priming Pump up to 1m.
• Excellent self-priming capability when located above the level of liquid.
• Sealed pressure switch automatically starts and stops pump when discharge valve is opened or closed.

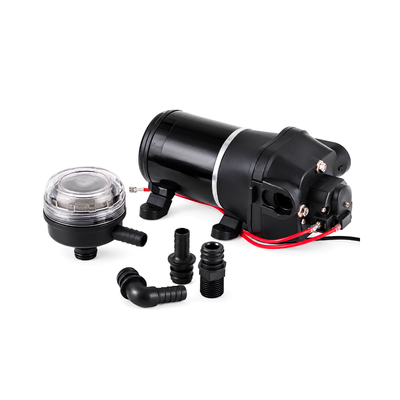

• Filter included for straining debris from water.
• Water temperature not to exceed 50* Celsius.
• Heavy duty diaphragm pump.

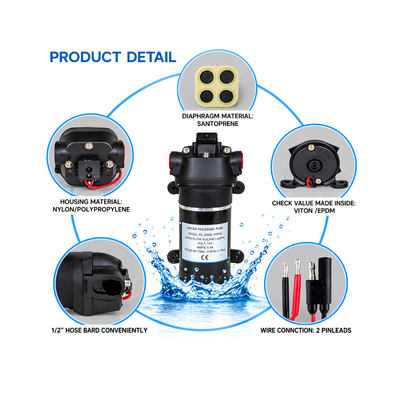

• EPDM for water, or Viton seals for light chemical applications.
• NON continuous use pump. 30 minutes on 10 minutes off.
• Built-in pressure switch automatically starts and stops pump instantaneously when discharge valve opens and closes.
• Compact design and plug-in port fittings make installation easy.
• Auto switch off when water runs dry.
• No metal is in contact with liquid while pumping.
• Ball bearing drive throughout pump and motor assures longer life.
• Powerful, permanent magnet motor with low current draw and long life brushes.


Application:

1. Reverse osmosis water purification system.
2. Supply of drinking water on boats or caravans.
3. Farming & mobile spray equipment.
4. General industrial equipment.
5. Printing.

Additional information

Weight 6 kg
Dimensions 40 x 40 x 4 cm
